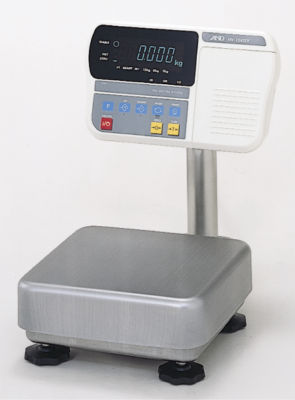

Scale hv-15KWP
(3/6/15 KG X 1/2/5 G Washdown)
The HV-WP series is a platform scale with 1/3000 resolution, and has a "triple weighing range" function to select the weighing range.
The scales have a fluorescent display so the weighing value can be read in dim light. This type uses the AC power line as a power source.
The couting mode function converts the total mass value (total weight) of articles to be counted, to a count, when each of these articles assume the same mass value.
The scales can display the unit of percentage.
The accumulation function accumulates each weighing value and counts the number of weighings using six figures.
The comparator function compares the display value with the upper limit value (HI), lower limit value (LO) and displays the result. The result can be output if option OP-03 is installed.
The simple batch function or full/dribble batch function can be used for filling up to a target mass value. The status of a weighing value can be output if option OP-03 or OP-04 is installed. The outputs are zero band, preliminary, and Final.
Using the optional RS-422/RS-485 serial interface and a computer, up to 16 scales can be controled, if this option is installed in place of the RS-232C serial interface.
This scale is designed to comply with IP-65 of IEC529.
