Hp 54602B - oscilloscope 150MHZ 4 channels rs-232

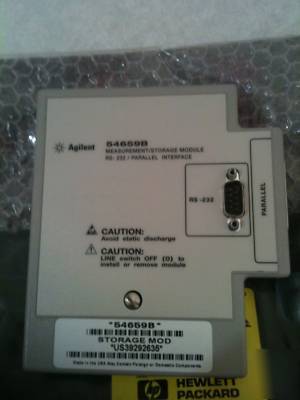

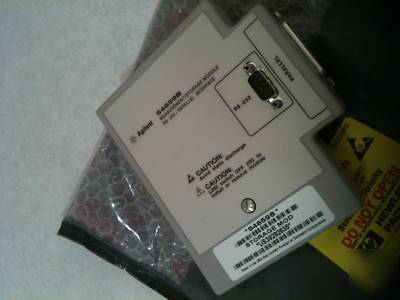

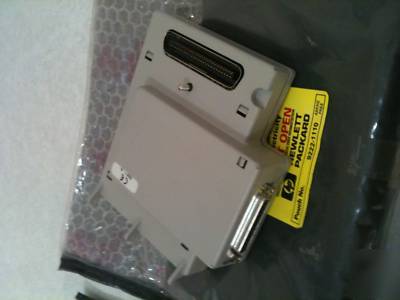

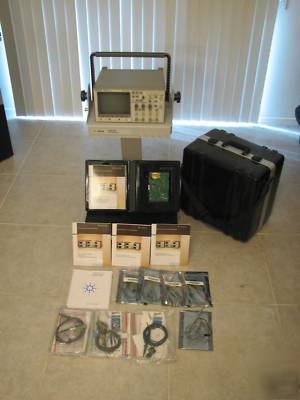

HP 54602B - Oscilloscope 150MHz 20MSa/s 4 Channels WITH 54659B RS-232/Parallel interface module!!
This unit features real-time vector displays that give a clear and accurate picture of your waveforms.
It's enhanced displays give you waveform slew rate information at a glance, with brighter traces representing more slowly changing waveforms and dimmer traces representing more rapidly changing waveforms.
A fast display update means the oscilloscope screen reflects changes in the waveform instantaneously, giving you the display responsiveness you need to make adjustments quickly and see complex waveforms accurately.
Up to 1.5 Million points per sec screen update rate
20MS/s Maximum Single-Shot Sample Rate
4kpoints Maximum Record Length
1mV/div to 5V/div Vertical Sensitivity on Ch 1 & 2
