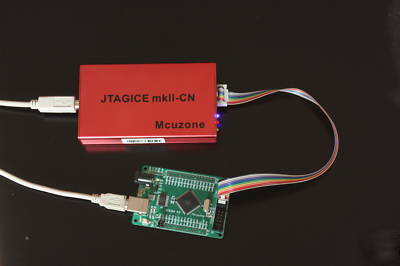

Avr/xmega/AVR32 isp/jtag/pdi + ATXMEGA64A3 dev board
Advanced AVR/xMEGA/AVR32 ISP/JTAG/PDI debugger/programer
***Global distributor needed, contact us for selling this device in your location.***
New firmware released, support xMEGA debugging via PDI & JTAG interfaces.
Support Avrstudio 4.17 and AVR32STUDIO 2.2.
Our own designed Hardware & Software.
Support debug via JTAG interface.
Support programer part with debugWIRE or JTAG interface.(i.e., ATmega8 is not supported, no debugWIRE nor JTAG equipped)
Support debug AVR32 parts, such as UC3, AP7000.
Support debug xMEGA parts via JTAG or PDI interface.
Support firmware upgrade. We will provide OUR OWN new fireware.
Perfect interface protect, work with 1.8v ~ 5.5V system.
ISP & JTAG programer speed is much faster than the original one.
NOT a mkII CLONE! But a new design, reduce latency, improve speed, and low cost.
NOT a simple combination of STK500 $ JTAG ICE.
Full tests passed in AVRSTUDIO (4.13/4.14/4.15/4.16/4.17) / AVR32 STUIDO (1.0.7/2.0.2/2.1/2.2) / IAR for AVR 4.30/5.11 and IAR for AVR32 2.21.
Full tests devices: AVR Mega series,Tinyseries,UC3 series,xmega64A1, ...
ONLY WORK with our own firmware. Visit our websit for new firmware availability.
Can be powered from external power supply or from USB. On board FT232RL for USB2UART. JTAG & PDI debug interfaces.
All pins on extension jack, suitable for AVR xmega learning & evaluation.
