Antenna analyzer vhf 26 - 170 mhz , coax , impedance

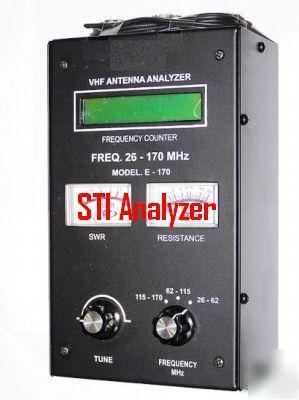

STI 170 VHF ANTENNA ANALYZER , Coax Analyzer , frequency counter , and much more !!!!
The Only device for you as a Technician , or Antenna Builder ........ Great Choice
STI 170 VHF ANTENNA ANALYZER is a device that is usefull to analyze antenna performance within ranges from 26 Mhz to 170 Mhz. You can read antenna SWR and Impedance , Just set the bandswitch and tune the dial ,and with AA Battery charger circuit
Working Frequency is devided by 3 section:
1. Frequency Counter : 100 Khz 200 Mhz
2. Antenna Analyzer : SWR and IMPEDANCE
3. Antenna Measurement : DIPOLE ANTENNA
4. Analyze : Coaxial Cable Wavelenght
5. Analyze : Coaxial Cable Velocity
6. Analyze : Inductance and Capacitance
