Mighty comet vertical machinging center vmc-510P

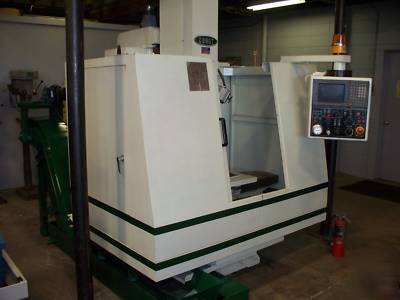

1-Used Comet Vertical Machining Center
Working Surface............................................................ 32 x 15.7
Max Table Load, at max rapid traverse.......................... 1,000 Lbs
X Axis, Table In Longitudinal Movement...................... 21
Y Axis, Saddle in Cross Movement............................... 16
Z Axis, Head in Vertical Movement.............................. 20
Dist between Spindle Nose & Table Surface................. 4.4 -24.4
Cutting Feedrate............................................................. 393 IPM
Rapid Traverse (X&Y Axis).......................................... 708 IPM
Rapid Traverse (Z Axis)................................................ 630 IPM
Spindle Nose Taper....................................................... #40 Cat
Spindle Speeds, Inf Variable......................................... 60-6000 RPM
Spindle Motor................................................................ 15 HP Peak, 10 HP 30 Min Rating
Drum Type ATC............................................................ 16 Tools
Max Tool Weight........................................................... 14 Lbs
Max Tool Size, Dia x Length......................................... 5 x 15
Tool Selection................................................................ Random
Base Dimensions........................................................... 72 x 90 x 105
Machine Weight............................................................. 8,000 Lbs
Full Length Splash Guard, Rigid Tapping, Coolant Unit, Automatic Lubrication Equipment, Air Blast thru Spindle, Lift Up Chip Conveyor
Price, FOB Orange City, IA.........................................$16,500.00
