Sandvik coromant C4 manual clamp unit. vdi-30 turret.

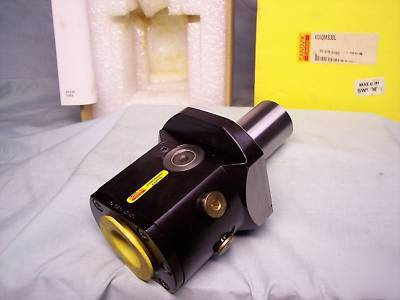

Sandvik Coromant Manually Operated Clamping Unit.
Please read entire add before purchasing. This unit is for a VDI-30 turret.

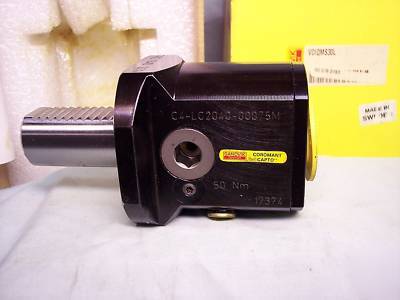

Part No. C4-LC2040-00075M. Going by this part number it should be for a VDI-40 turret but it is not.( the shank diameter is 30mm or 1.181.), I think Sandvik only offers a C3 in a VDI-30 type clamp so these were probably made special. Going by Sandviks ordering info, I think the part number should be C4-LC2030-00075M but there is no such part number in Sandviks catalog.

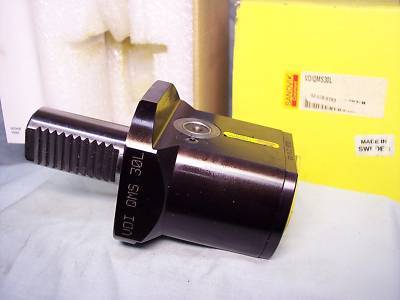

VDIQMS30L is another part number on the unit. I haven't been able to find much information by this part number.
Here are a couple links. http://www2.coromant.sandvik.com/coromant/pdf/Metalworking_Products_051/turn_e_16-30.pdf
http://www2.sandvik.com/sandvik/4610/coromant/internet/US01153.nsf/Alldocs/Products*5CToolholding*Systems*5CCoromant*Capto*2AMachine*Adapted*Clamping*Unit*Catalogs/$file/okuma_macu_brochure09.pdf
