New adtec/ad-tec ax-2000EUII-n rf generator 2KW @ 13.56

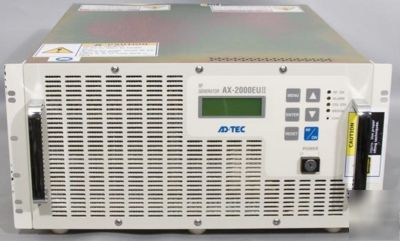

NEW Ad-tec Plasma Technology AX-2000EUII-N RF Generator
This unit is brand new, off the shelf surplus, from Intel. The fan on the back has some broken plastic however that occured during transportation and storage. The unit also has minor scuffs. It is guaranteed Non-DOA.
Output Power Specification: 2000 W (13.56 MHz)
Input Power Requirements: 3 Phase, 208 V, 50/60 Hz, 3.8 kVA
Output Settable range: (1W increments) at 50
Output Deviation: 1% of Set Value or 4W(whichever is larger) at 25 C
Frequency Stability: 0.01% (10 C - 40 C)
Output Harmonic distortion: Less than -50 dB of fundamental wave
Remote Control connection: Analog control RS-232C Control(D-sub 9pin)
Output Connector: HN-type Receptacle
Power Supply: 3-phase, 3-wire 50/60Hz, 200/220V, 4.2kVA
Protection Features: Reflected power level+time / Reflected power limit / Current value+time / Current limit / Amp temperature / Reflected power control
Dimensions: W 430 x D 550 x H 177 mm (excluding protruding parts)
* Picture 3 - Front Panel Controls & Display
* Picture 4 - RF Output Connector
* Picture 5 - Additional Connections #1
* Picture 6 - Additional Connections #2
* Picture 8 - Model Number & Specifications
