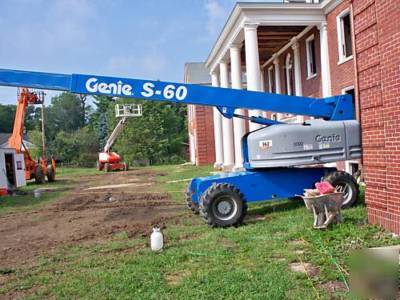

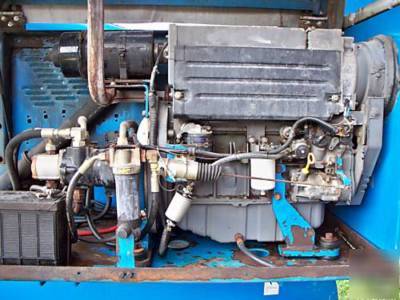

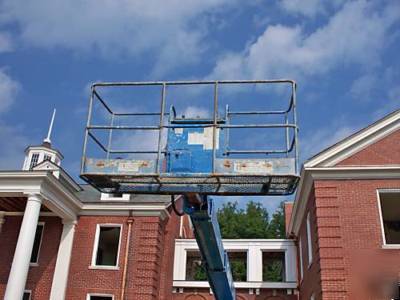

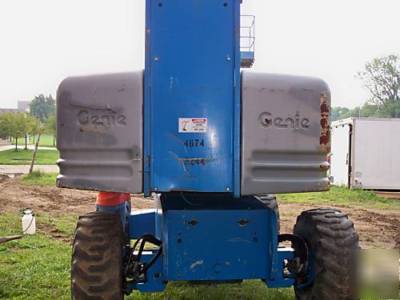

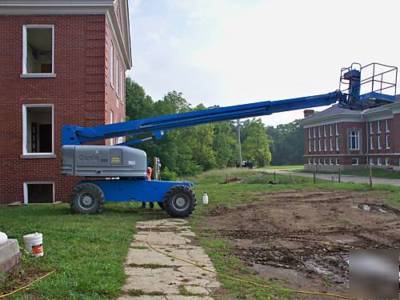

1999 genie s-60 4X4 diesel telescopic boom lift
Working height maximum* 66 ft 20.30 m 71 ft 21.80 m
Platform height maximum 60 ft 18.30 m 65 ft 19.80 m
Horizontal reach maximum 50 ft 10 in 15.48 m 56 ft 2 in 17.10 m
Below ground reach 5 ft 7 in 1.70 m 8 ft 11 in 2.72 m
Platform length - 8 ft model 3 ft .91 m 3 ft .91 m
Platform length - 6 ft model 2 ft 6 in .76 m 2 ft 6 in .76 m
Platform width - 8 ft model 8 ft 2.44 m 8 ft 2.44 m
Platform width - 6 ft model 6 ft 1.83 m 6 ft 1.83 m
Height - stowed 8 ft 11 in 2.72 m 8 ft 11 in 2.72 m
Length - stowed 27 ft 11 in 8.51 m 31 ft 2 in 9.50 m
Length - transport (jib tucked under) 25 ft 7.60 m
Width (with standard tires) 8 ft 2 in 2.49 m 8 ft 2 in 2.49 m
Wheelbase 8 ft 2.5 in 2.50 m 8 ft 2.5 in 2.50 m
Ground clearance - center 1 ft 2.5 in .37 m 1 ft 2.5 in .37 m
