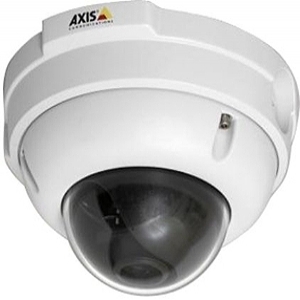

Axis 225FD 0243-064 ip network ethernet camera fixed
Model/Part Number: 225FD (0243-064)
Axis 225FD Network Camera - Color, Black & White - CCD - Cable
AXIS 225FD Fixed Dome Network Camera is a high-performance camera for professional surveillance and remote monitoring. Its discreet, vandal-resistant and outdoor proof design provides maximum protection in tough environmental conditions. The progressive scan sensor together with the automatic removable infrared filter delivers crisp and clear images day and night. Supported by the industry largest base of video management software, AXIS 225FD provides the perfect solution for securing areas such as schools, university campuses, railway stations or car park buildingsover the network.
Manufacturer Axis Communications
Standard Warranty 3 Year Limited
Input Voltage 9 V DC to 24 V DC
Input Voltage 10 V AC to 24 V AC
Video Resolution 640 x 480 @ 30 fps MPEG-4
Video Resolution 160 x 120 @ 30 fps MPEG-4
Manufacturer Part Number 0243-064
Interfaces/Ports 1 x RJ-45 10/100Base-TX
Interfaces/Ports 1 x Alarm Out
Interfaces/Ports 1 x RS-485 Serial
Interfaces/Ports 1 x DC Power Input
Illumination 1.5Lux - Color Mode @F1.5
Illumination 0.3Lux - Black & White @F1.5
Manufacturer Website Address axis
Product Name 225FD Network Camera
Dimensions 4.53" Height x 6.89" Diameter
Product Type Surveillance/Network Camera
Lens Type: Focal Length : 9 - 22 mm
* Installation and management tools
* MPEG-4 licenses (1 encoder, 1 decoder)
Manufacturer Axis Communications
Connectivity Technology Cable
Standard Warranty 3 Year Limited
Interfaces/Ports 1 x RJ-45 10/100Base-TX
Interfaces/Ports 2 x Alarm In
Interfaces/Ports 1 x Alarm Out
Interfaces/Ports 1 x RS-485 Serial
Interfaces/Ports 1 x DC Power Input
Input Voltage 9 V DC to 24 V DC
Input Voltage 10 V AC to 24 V AC
Manufacturer Part Number 0243-064
Video Resolution 640 x 480 @ 30 fps MPEG-4
Video Resolution 160 x 120 @ 30 fps MPEG-4
* Pentium III CPU 500 MHz or higher
* AGP graphics card 32 MB RAM
* Internet Explorer 6.x or later
Manufacturer Website Address axis
Dimensions 4.53" Height x 6.89" Diameter
Illumination 1.5Lux - Color Mode @F1.5
Illumination 0.3Lux - Black & White @F1.5
* Multiple user access levels with password protection
* IEEE 802.1X network access control
Color Support Black & White
Product Name 225FD Network Camera
Product Type Surveillance/Network Camera
