Aml M3000 portable bar code reader/ ac adapter & cables

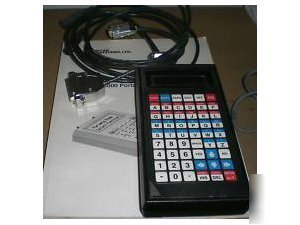

Not actual item picture. Product same.
This is a used unit with 2 serial cables, AC adapter, new 9v battery, and manual.
The M3000 keyboard has been designed with separate alpha and numeric keys and a color code of red, white, and blue for multiple keystroke combinations. The SHIFT key can be pressed with any of the keys with blue headers to change the key operation to the character in blue. The FUNC key can be pressed with any of the keys with red headers to perform all the M3000 functions. All alpha keys can be changed to upper case by pressing the CAPS key.
* Input Devices: Wand, CCD, 5V Laser, RS-232 Serial
* Keyboard: 54 key embossed tactile membrane keyboard with separate alpha and numeric keys
* Special Keys: Function Keys F1-F10, Ctrl, Alt, Shift, Home, End, PgUp, PgDn, Ins, Del, Arrow Keys
* Display: 2x16 Super-Twist LCD (wide viewing angle)
* Memory: 64K EPROM, 64K RAM with data compression and variable length fields
* Date/Time: Real-time clock supports date and time stamps
* Bar Codes: Code 39, Extended Code 39 (Full ASCII), Interleaved 2 of 5, UPC-A, UPC-E, EAN-8, EAN-13, UPC & EAN supplements, Code 128, Code 93, Code 11, CODABAR, MSI/Plessey
* Serial: Baud rate: 300-38,400; Data bits 7 or 8; Stop bits: 1 or 2; Parity: ODD, EVEN, MARK, NONE
* Inter-character delay: 0-99msec.
* Protocols: RS-232: XON/XOFF, XMODEM., ASCII, HAYES Modem; Serial Wedge: ASII or PC-TERMINAL scan codes; Keyboard Wedge: IBM PC/XT/AT or PS/2
* Power: Operating: 9V Alkaline battery or external power supply (not included); Backup: Lithium battery for memory backup
* Environmental: Operating Temperature: 0 C to +50 C (+32 F to +120 F); Relative Humidity: 5% to 95% (non-condensing)
