New countertop electric fryer-toastmaster-commercial-
The Toastmaster Electric Countertop Fryers are the most economical and flexible Electric Countertop Fryer in the food service industry. They offer unsurpassed performance, combining proven control system with Toastmaster quality and durability. They are designed to efficiently fry variety of products by immersion into heated liquefied shortening.

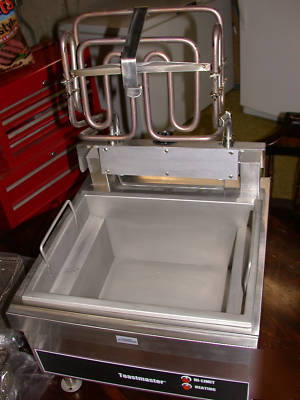

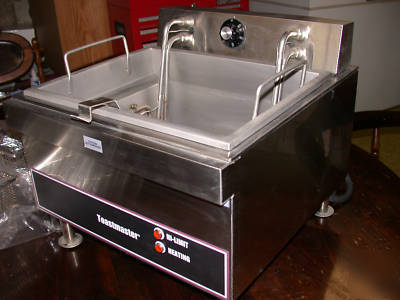

The fryers are equipped with immersion type stainless steel tubular heating elements which swing up and burn clean periodically in the raised position. The elements configuration surrounds the sides, front, back and bottom of the shortening container. A handle is provided for raising and lowering the heating elements.
The exterior case is made of stainless steel, welded and reinforced at front, sides and top. The rear is made of aluminized steel.
The fryers are equipped with immersion type stainless steel tubular heating elements which swing up and burn clean periodically in the raised position.
The element configuration surrounds the sides, front, back and bottom of the shortening container. A handle is provided for raising and lowering the heating element.
A cold zone is provided beneath heating elements to collect loose food particles.

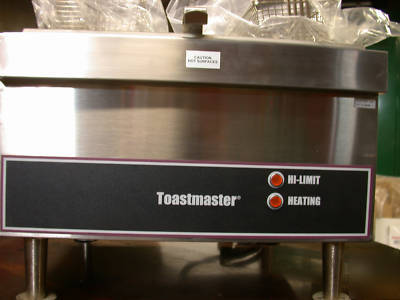

The cooking temperature is controlled by an adjustable thermostat from 250oF to 400oF with a positive OFF setting. A signal light cycles with the heaters.
The fryer includes a temperature limiting thermostat which functions if an overheated condition exist. A signal light denotes overheated when the temperature limiting thermostat has sensed an overheated condition.
The temperature limiting thermostat require manual resetting when tripped and reset after periodic cleaning.
Shortening temperature is controlled by a thermostat from 250
with a positive OFF position.
Removable stainless steel tank.

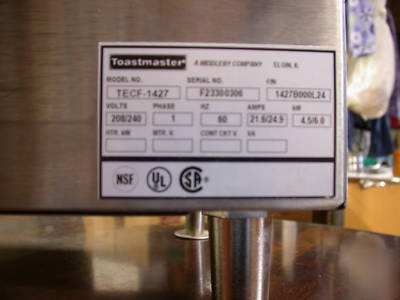

The 1427 has a rated input of 6 KW at 240 volts and 4.5 KW at 208V.

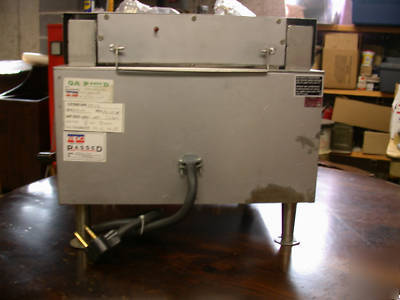

The bottom and back are aluminized steel and there is a little corrosion from sitting in the warehouse. You can see it in the back picture (lower right).
The rest of the unit is Stainless Steel even the legs.
Also included is the Owners Manual and Spec. sheets.
