Hp agilent 1165A miniature passive probe 1160 series

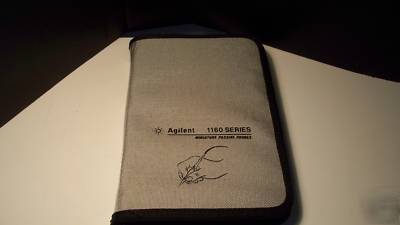

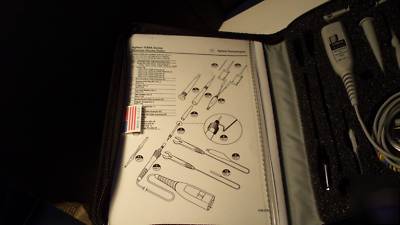

THIS ITEM IS NEW IN ORIGINAL ZIP UP CASE WITH ALL PARTS AND PAPERS
THE ITEM IN THE PICTURES IS EXACTLY WHAT YOU WILL RECIEVE
1.5m Miniature Passive Probe, 10:1, 10 MOhm
* High Impedance, Passive Probe
* New no-slip tip with crown point

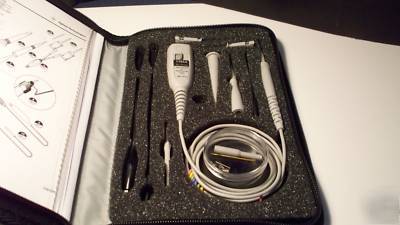

* Includes a variety of grounding accessories
* Compact design, removable probe handle for
* Significantly reduces the problem of probing densely populated integrated circuit components or the characteristically minute conductors on printed circuit boards
* System bandwidth (scope + probe): 600 MHz
* The Agilent 1165A minature passive probe is a small, rugged, general purpose probe for use with the Infiniium 8000 Series and 54830 Series oscilloscopes. It is fully compatible with the Agilent Auto Probe interface which completely configures the Infiniium oscilloscope for the probe.
These general purpose replacement devices are built and tested for high reliability. Kevlar strengthener has been added to the probe cable for extra pull strength. Durable probe tips are replaceable.
The compact design significantly reduces the problem of probing densely populated integrated circuit components or the characteristically minute conductors on printed circuit boards. These small lightweight probes allow measurements that were previously quite difficult, while reducing the danger of shorting. For tight probing areas, the probe handle can be unscrewed and pulled back along the cable.
When probing about the circuit in debug mode, the probes easily slip inside the included browsers. The browsers feature a crown point that digs into solder and avoids the danger of slipping off the test point and shorting to adjacent leads. A pogo pin allows hand movement on the probes without losing contact with the device under test.
