Health technology gilmour acid foam gun 77QGFQ 77QG

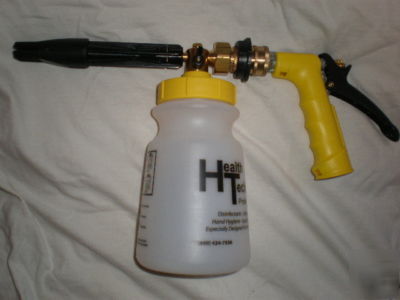

HEALTH TECHNOLOGY/ GILMOUR ..-ACID FOAM GUN.. HOSE END SPRAYER .. HEAVY DUTY COMERCIAL HOSE END ACID FOAMER..MODEL 77QGFQ (GILMOUR MODEL 77QG)
* MODEL 77QGFQ (GILMOUR MODEL 77QG)..MODEL 77QGQ FOAM GUN
* HEAVY-DUTY COMMERCIAL HOSE END FOAMER/PROPORTIONATOR
* PROPERLY BLENDS WATER AND CONCENTRATED CHEMICAL
* FOAM APPLICATION OF READY TO USE SOLUTION
* QUICK DISCONNECT BETWEEN A ONE QUARTER RESERVOIR AND INSULATED NOZZLE FOR A CLEAN WATER RINSE
* EXACT MEASUREMENT SAVES TIME AND MONEY
* SPRAYS READY-TO-USE SOLUTION
* KEEPS IT SIMPLE AND TROUBLE FREE
* ACCURETELY MIXES AND SPRAYS FOAMING CHEMICALS
* FOAM GENERATING WAND CREATES A THICK, CLINGING FOAM
* DETACH HANDLE FOR A POWERFUL SPRAY RINSE
* BUILT-IN SCREEN FILTER OUT SEDIMENT BEFORE IT REACHES YOUR VEHICLE
* MIXES ACID WITH WATER AT RATIOS OF 1-3, 1-4, 1-6, 1-9
* METERING STEM IN MIXING HEAD TO ADJUST RATES
* EXCLUSIVE RINSE LEVER SWITCHES TO RINSE INSTANTLY
* BARBED PICK UP FITTING ACCEPTS STANDAR TUBING FOR CONNECTION TO LARGE CHEMICAL CONTAINERS
* AN ECONOMICAL AND EFFECTIVE WATER PERATED SPRAYER FOR APPLYING ACID OR CAUSTIC CLEANERS
* RECOMMENDED WATER PRESSURE - 40 TO 60 P.S.I.
* ASSEMBLY INSTRUCTIONS: SLIDE PLASTIC SIPHON TUBE OVER BRASS TUBE CONNECTOR UNDER BOTLE CAP, AND ATTACH TO THE TWO QUART BOTTLE
* OPERATION: CONNECT WATER SUPPLY HOSE TO PISTOL GRIP SHUT-OFF VALVE HANDLE. REMOVE AND FILL BOTTLE WITH LIQUID CHEMICAL CONCENTRATE
* CAUTION: TO PREVENT CHEMICAL LOSS FROM BOTTLE OUT OF AIR VENT HOLE IN MIXING HEAD, SPRAYER ASSEMBLY MUIST REMAIN IN UPRIGHT POSITION AT ALL TIMES
* PLACE METERING STEM LEVER IN VERTICAL POSITION TO SOPHON CHEMICAL. THIS WILL AUTOMATICALLY MIX CHEMICAL WITH WATER AT FACTORY PRESET DILUTION RATE. PISTOL GRIP SHUT-OFF VALVE LEVER MUST BE FULLY DEPRESSED FOR ACCURATE MIXING
* FOR POWERFUL CLEAR WATER RINSE, REMOVE HANDLE FROM SIPHON HEAD AND USE AS A INSULATED WATER NOZZLE. PULL BACK SNAP RING ON FEMALE QUICK COUPLE TO DETACH OR REATTACH HANDLE TO MIXXING HEAD. FOR MORE GENTLE RINSE WITHOUT REMOVING HANDLE, MOVE METERING STEM LEVER TO A HORIZONTAL POSITION
* IMPORTANT NOTE: HANDLE SUPPLIED WITH GUN CONTAINS AN CHECK VALVE TO PROTECT WATER SUPPLY FROM ACCIDENTAL CHEMICAL CONTAMINATION
* DO NOT USE ANY OTHER HANDLE WITH THIS SPRAYER

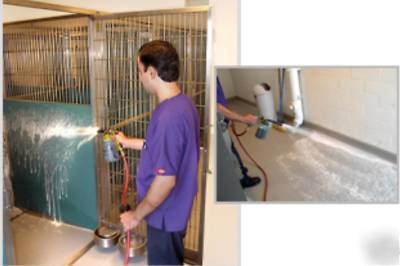

* THE DEFLECTOR FANS OUT OF THE SPRAYER TO COVER LARGER AREAS WHILE THE FOAM WAND WILL GENERATE FOAM WHERE DESIRED., BOTH ARE REMOVABLE FOR A SOLID STREAM THAT CAN CARRY UP TO 20 FEET
* THIS ITEM IS ORIGINAL BOX AND WILL BE PACKINK
