> New yale 5405LN au commercial lockset grade 1 storeroom

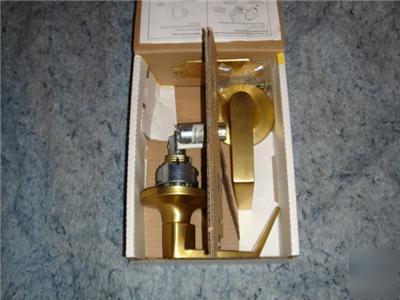

New yale 5405LN au commercial lockset grade 1 storeroom
YALE 5405LN AU COMMERCIAL LOCKSET HANDLESET STOREROOM
5405LN AU Storeroom/Closet Heavy Duty Lever Cylindrical Lock
* Certified ANSI/BHMA A156.2, Series 4000 Grade 1
* For doors from 1-3/4" to 2-1/4" thick
* Latchbolt - 1/2" (13mm) throw, deadlocking or plain, supplied standard
* Backset - 2-3/4'' standard
* Constructed of heavy-gauge cold-rolled steel
* All parts zinc plated chromate for maximum corrosion resistance
* UL-cUL Listed for use on fire doors having a rating up to and including 3-hours.
* For use on storeroom, utility, and exit doors.
* Latchbolt operated by lever inside, key in outside lever.
* Outside lever always locked.
* Inside lever always active.
Handed arm is field-reversible
* Installs easily without the need for specialized installation tools.
* No exposed mounting screws to deter vandalism.
* Patented Free Wheeling lever mechanism increases vandal resistance and reduces the amount of maintenance typically required of locksets with rigid levers.
http://absupply.net/ext/Yale-5400LN.pdf
http:// /book02/534-536.pdf
THESE LOCKSETS ARE NEW IN THE ORIGINAL UNOPENED BOXES.
FINISH IS 606E SATIN BRASS WHICH LOOKS SIMILAR TO AN AGED BRASS BUT WITHOUT THE OUTDATED LOOK
Some fonts used on this page are created and distributed by deviantart.
THIS UNIT WILL COME WITH LOCK CYLINDER DISENGAGED SO YOU CAN HAVE IT KEYED TO ANY YALE KEY THAT YOU LIKE
