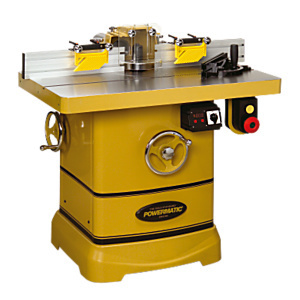

New brand powermatic shaper -5HP,3PH or 1PH - pm 2700
This new PM2700 Shaper offers more features to you than any other shaper in the same class. The extra large 30" x 40" precision ground cast iron table includes a heavy duty miter gauge with an aluminum extruded support. The built-in, omni-directional caster system (patent pending) is retractable into the base. A quick-release lever allows fast speed and belt changes. The extruded aluminum fence has several T-slots so you can mount a wood face to create a no-clearance surface around any shaper or router bit. The fence also gives you the ability to quickly move the fence close to its final position, lock it in and then use the precision micro adjustments on each side of the cutter to dial in exactly the position you need. Adding to the precision of this machine is a digital readout for the spindle height. This allows making adjustments to within .001" in the spindle height, which is critical when aligning rail and stile cutters for those raised panel doors.
Part Number: 1280102C for 3PH - or - 1280101C for 1PH
Spindle Speed: 7500 and 10,000 RPM
Spindle Diameter: 3/4 and 1 1/4 "
Spindle Size Under Nut: 3/4 (3 3/4) and 1 1/4 (6) "
Table Height From Floor: 35.5 "
Table Opening Diameter: 7 3/8 "
Table Insert Opening Diameter: 2 35/64, 4 5/32 and 5 3/4 "
Fence Size (L x H): 18 3/4 x 4 7/8 "
Fence Travel (Major and Minor): n.a.
Slide Table Size (L x W): n.a.
Table Inserts: 2 35/64, 4 5/32 and 5 3/4 "
Router Bit Collet Diameter: 1/4 and 1/2 " (optional)
Dust Port Outside Diameter: 4 " (dual ports)
Dust Collection Minimum CFM Required: 600 cu.ft/min
Electrical Controls - Magnetic Starter: Yes
Digital Readouts: spindle height
Wiring Remarks: Requires 460 V magnetic switch
Integrated caster system built into the cast iron base for instant shop mobility
Spindle height digital readout for making fine incremental adjustments on multiple passes
Heavy duty 30" x 40" precision ground tabletop for smooth stock feeding
Convenient quick lock belt tensioning for easy speed adjustment
Industrial fence system with fine adjust dials for more precise positioning
5HP totally enclosed motor offers plenty of power
Two spindle speeds (reversible) for a variety of work
Superior clear cutter guard promotes safety, allows observation of the entire cut
Table predrilled and tapped for feeder mounting in two locations
Fence has dual featherboards for work holding
Dual 4" ports for attachment to dust collection system
3/4" and 1-1/4" interchangeable spindle collets
Spindle height digital readout
FREE FREIGHT TO 48 CONTINENTAL STATES
