> New brand honeywell 3/4" thermostatic mixing valves
New brand honeywell 3/4" thermostatic mixing valves
you will get item described not the pictured item!
Honeywell AM101R-US-1 3/4" Mixing Valve
The Honeywell AM-1 series accurately adjusts, maintains and limits the hot water temperature to a desired setting selected by the user. In domestic water applications it offers scalding protection and bacteria growth control. By installing a Honeywell AM-1 mixing valve and raising water heater storage temperature setting and limiting mixed outlet water temperature to safe temperature more usable hot water is available. In heating applications it provides comfort and protects the equipment.
Dual purpose mixing or diverting valves
Constant water temperature under changing operating conditions
Reliable performance at minimum flow of 0.5 gpm
Proportional valve (simultaneous control of hot and cold water)
Temperature limit at any point
Flow reduction in seconds if cold water supply is interrupted
Nickel-plated brass construction, EPDM O-rings
All brass proportioning shuttle
Straight through design (hot and cold at the same level)
Max. pressure 150 psi (1034 kPa)
Max temperature 212 F (100 C)
Designed for easy maintenance and element replacement. Teflon coated to prevent mineral build-up and extend life.
AM-1 Union STD & C and AM1070 Models include check valves(hot/cold ports)
3/4 inch Sweat Union Mixing Valves HEATING OLY
Operating Temperature Range (F)
Operating Temperature Range (C)

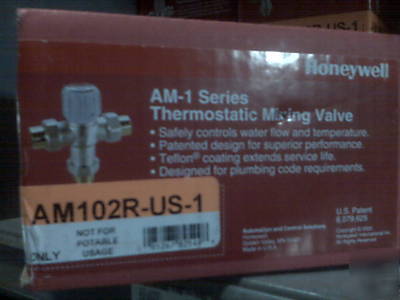

NOTE: PLEASE NOTE THAT YOU WILL BE GETTING A 3/4" VALVE NOT THE ONE PICTURED WHICH IS A 1". THANK YOU.
