Grundfos mp-1 submersible pump w/ bmi / mp-1 converter
GROUNDWATER SAMPLING PUMP AND CONTROLLER
The Controller Costs Over $2,600.00 (USD) from Grundfos and the Pump Costs Well Over $1,200.00 (USD)!!! The Included Hose Reel Cost $250.00(USD)!
ALL Offers Will Be Considered!!

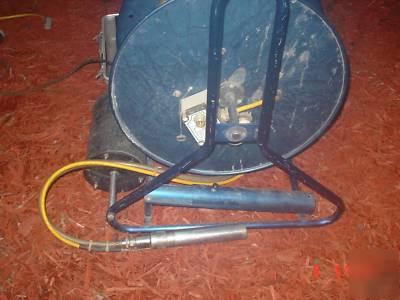

Grundfos MP-1 Pump Description:
Specifications of the Grundfos MP-1 are:
* Maximum Operating Depth - 90m
* Made of Chemically Inert Materials Ensuring No Contaminants During Sampling
* Smooth, Uninterrupted Flow Allows for a Cleaner and More Accurate Sample

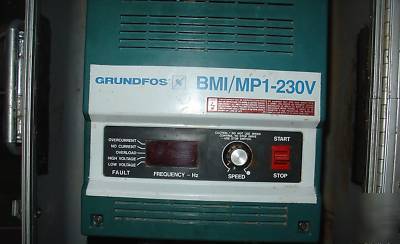

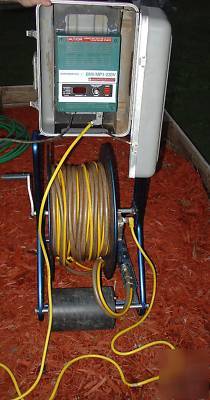

Grundfos BMI/MP-1 Controller Description:
The BMI/MP-1 controller is specifically designed to provide the needed power output to properly control the rate of flow of the MP-1 pump. The controller operates on 220-240 volts at 50-60Hz and pulls a maximum current of 10 amps. The controller has an acceleration time of 0 to 400Hz in a maximum of 6 second which provides a quick greatly reduce your smapling times.
* Supply voltage: 1 x 220-240 Volts 15%/+10%, 50/60 Hz, PE
* Connecting cable: 3 x 1.5 mm 3 m with plug
* Output voltage: 3 x 25 V, 50 Hz 3 x 210 V, 400 Hz
* Motor protection: Built-in overcurrent protective device, set to 6.0 Amps
* Acceleration time: 0 to 400 Hz: Max. 6 seconds
* Deceleration time: 400 to 0 Hz: Max. 6 seconds
