> Flashmaster ii jones chromatography, foxy 200 collector
Flashmaster ii jones chromatography, foxy 200 collector

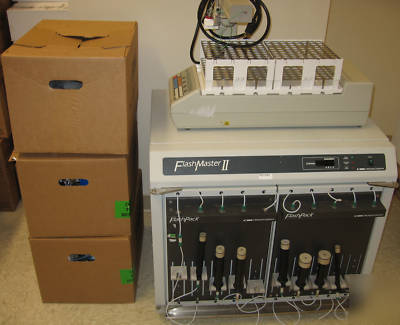

Like NEW FlashMaster II Jones Chromatography System and Foxy 200 Fraction Collector with 3 boxes of NEW Consumables.
Designed for optimum throughput in flash chromatography, the FlashMaster Automated Flash Chromatography System , high-throughput sample purification applications UV Detector, Pump, Controller, software, computer, many consumables I
Foxy 200 collects fractions your way for HPLC, classical LC, and production LC. It cuts peaks and controls valves and pumps to automate your protocols. You ll also get tremendous capacity - up to 288 tubes or 72 outboard containers - in only 29 cm of bench width.
For flash chromatography, the CombiFlash Foxy 200 features a grounded flow path and Teflon diverter valve for compatibility with organic solvents.
Foxy 200 interfaces easily with practically any automated HPLC system. Its ability to identify and collect peaks while diverting waste effluent - and restart its program on command when a new sample is injected - makes it easy to implement walkaway and overnight runs.
Rigid, warp-proof racks hold almost any tube or vial, and even 96-well microplates. When you need increased amounts of purified product, Foxy 200 makes it easy to jump from method development to automated production LC. Collect unlimited volumes in off-deck containers with a choice of funnel racks.
Foxy 200 can automate your LC - with no computer needed. The optional Foxy 200 valve controller lets you do time-programmable solvent-or buffer-switching, gradient formation, inject samples, and regenerate or back-flush columns.
* Collect peaks of interest separately using any combination of slope, level, and time windows. Foxy 200 reliably separates peaks by monitoring detector output, so you don t have to expend glassware on no-interest effluent.
* Easy interfacing with event-triggered program restart.
* Collect uniform fractions by time, drop count, or pumped volume.
* Built-in fault prevention.
* Easy-to-read display and intuitive programming make setup quick and error-free.
* Stores up to 4 collection programs in battery backed memory.
* Choice of available racks (specify when ordering).
* Coldroom-friendly design with standby warmers to prevent condensation damage
* Low-pressure biochromatography
* Flash Chromatography (with CombiFlash Foxy Jr. organic-solvent compatible model)
* CombiFlash Foxy 200 Fraction Collector with grounded drop former and Teflon diverter valve. Compatible with organic solvents. Includes racks for 16mm tubes.
* Foxy 200XT adapter kit. Converts standard Foxy 200 to XT version for collection into vessels over 180 mm tall
* Foxy 200 prep adapter kit. Converts standard Foxy 200 to 5 liter/min (max) prep version. Includes 26-funnel preparative rack plus all parts needed to use 1/4" ID inlet tubing
* Foxy 200 valve controller - provides programmable automation via time-based control of special 2-way and/or 3-way valves.
* Foxy 200 Gradient Former. Must be used with a Foxy 200. Two styles available - polymer mixing chamber, 0.1 - 25 ml/min flow rate; stainless steel mixing chamber, 10-100 ml/min
* Multiple Foxy 200 Arrays. Connection kits let you connect up to four Foxy 200s, used in series with single channel systems.
* Security (on/off, low pressure) and diverter (3-way) valves for added protection against spills. Automatically stops or diverts flow before each tube change, at the end of the run, and during a power failure.
* PeakTrak software - uses color-coded graphics to save time and eliminate errors by tracking samples and identifying fractions with collection tubes. Compatible with any LC system using an Isco Foxy fraction collector and detector with analog output.
* Size fractions by pumped volume when using Isco s Tris pump.
* Automatic pump shutoff with optional cable.
* Foxy collection racks. Foxy 200 holds two; see Tube Capacity specifications for choices.
