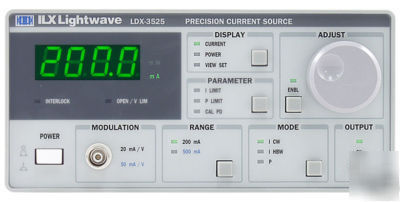

Ilx lightwave LDX3525 precision current source
Output Current Range: 200/500 mA
Setpoint Resolution: 50/125 A
Setpoint Accuracy (% of FS): 0.1% ( .2 / .5 mA)
Temperature Coeffi cient: <50 ppm/ C
Short-Term Stability (1 hr): <20 ppm
Long-Term Stability (24 hr): <50 ppm
Reverse Bias: 0 5 V, adjustable
Photodiode Current Range: 5 5000 microAmp
Setpoint Accuracy (% of FS): 0.1%
Transfer Function Accuracy: 10%
High Bandwidth Mode: 0 500/0 150kHz
Transfer Function ( 5% of FS): 20/50 mA/V
Current Source Output: 9-pin, D-sub female
Chassis Ground: 4 mm Banana Jack
Output Current Range: 0 200.0/0 500.0mA
Output Current Resolution: 0.1/0.1 mA
Output Current Accuracy:9 0.1% of FS
Photodiode Current Range: 0 5.000 mA
Photodiode Current Resolution: 0.001 mA
Photodiode Current Accuracy:9 0.1% of FS
Photodiode Resposivity Range:10 0.001 1.000 mA/mW
Photodiode Responsivity Resolution:10 0.001 mA/mW
Optical Power Range: 0 500.0 mW
Optical Power Resolution: 0.1 mW
