> 6967 he&m model 1500LA automatic horizontal band saw
6967 he&m model 1500LA automatic horizontal band saw

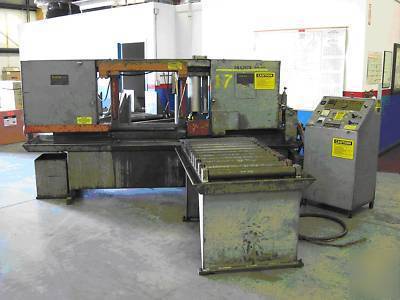

HE&M MODEL 1500LA AUTOMATIC HORIZONTAL BAND SAW
Capacity 25 x25 round or flat
Blade Size 1-1/2 x 21 6 x .050 THK
Shuttle 24 up to 10 times index
Blade Drive 10 Hp, 220V/440V AC,
Coolant System 4 gpm sealed coolant pump

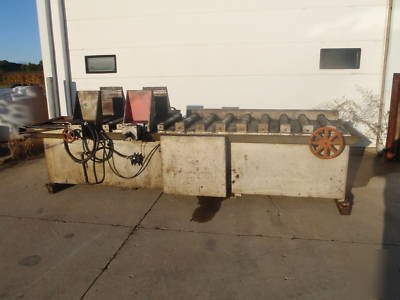

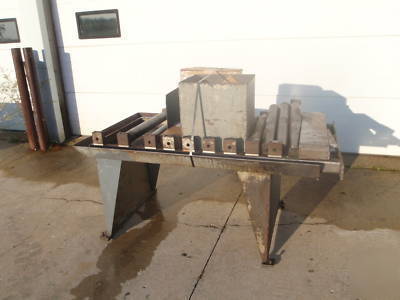

Saw is equipped with 12 in-feed table.
Shaft driver brush removes chips from the blade
Automatic floating (self adjusting) shuttle vise feed system w/ additional
Rollers, prevents binding of crooked & distorted material.
