5.0INCH touching panel for AT050TN22 v.1
Hello, this offer is only for the Touching panel (10USD/pcs)
Do not include TP controller and other items.

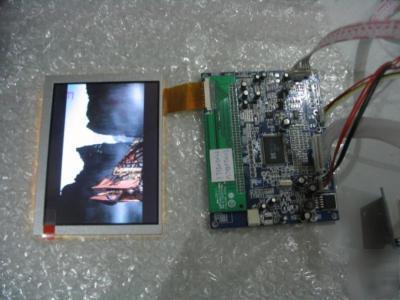

Innolux 5.0inch TFT LCD Module, 640x480, AT050TN22 V.1, Package Offer:
Including: 1) LCD (50USD) + A/D board with VGA/AV(35USD)+ 4 wire TP (10USD)
(Please note you have to solder 4 wire TP to TP USB Controller yourself)
- Outer Dimension: 107.65x88.43x5.7mm
- Display Area: 101.568x76.176mm
- Working Temperature: -20 - 70C, Storage Temperature: -30 - 80C
- LED Backlight 9.9V, Life time: 20000Hours
- Brightness 200cd/m2, Contrast Ratio:500:1
- VGA/AV Driver Borad is available
With/Without Touching panel is available. Current Price is with Touching panel.
A/D board another 35USD/pcs, Touching panel, 10USD/pcs. Please feel to ask for specification.
B) To Europe 1) EMS: 25USD/0.5KG, 8~9days
C) To Worldwide(except EMS/DHL remote area)
