> 07 extrude hone vector 200 polishing & deburring system

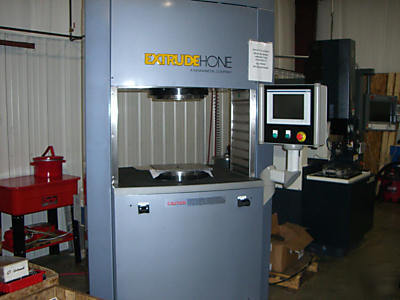

07 extrude hone vector 200 polishing & deburring system
The Extrude Hone VECTOR Abrasive Flow Machining (AFM) system is an extremely flexible machine. It is capable of polishing large extrusion and forming dies, deburring and polishing precision parts in small to medium batch quantities.
A wide selection of available media cylinder diameters offer a broad choice of pressure ranges to meet specific production requirements. The VECTOR features an ergonomic and robust design that is easy to maintain and will deliver years of reliable service. A large work envelope accommodates large components and tooling.
A standard feature on the VECTOR is an easy-to-use touch screen operator interface monitoring and saving all major processing data. A five horsepower hydraulic power unit is also standard, delivering a generous range of process pressures. An optional 10 hp power unit is also available.
AUTOFLOW Advanced Control option
For maximum process control. State-of-the-art control system stores and monitors all major process data.
Media Temperature Management options
Controlling the temperature of the abrasive media gives a more consistent machining rate
Individually configurable AFM system
Many options create a tailor-made system.
Fast set-up and change of media
Generously dimensioned work envelope for large workpieces and rapid tool change.
All process data at a glance
Touch screen interface for easy operation and setup.
Voltage: 3 Phase - 2301460 V -60 Hz
EXTERNAL HYDRAULIC POWER UNIT:
is completely hydraulic to allow for quick accurate travel of upper ram. Travel speed is approximately 1" per second.
the machine is controlled by an Allen-Bradley PLC. The operator interface terminal is a touch screen. Standard functions include remote media pressure adjustment, real time display of media piston position, automatic and manual mode, a displacement counter, a cycle counter, and a cycle timer.
The machine process parameters are preset via the operator interface terminal and can also be monitored on the operator Interface terminal once the automatic cycle has been initiated.
a preset (1-9999 cu. in.) volumetric control allows for precise volume of media flow through a workpiece.
The number of cycles may be preset
within the range of 1 to 9999 to allow for continuous"
cycling in the automatic mode.
A machine control option that allows the desired media flow rate to be entered as one of the process parameters at the operator interface terminal. The machine will automatically adjust back pressure to achieve the preset media flow rate. The resulting process is much more tolerant of media and temperature variables.
