> full color 16MM led billboard 6' 8 1/2 "x 20' 2"
full color 16MM led billboard 6' 8 1/2 "x 20' 2"

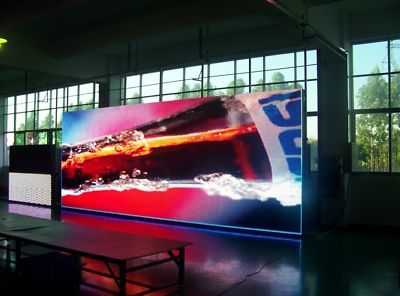

P.C. PROGRAMMABLE LED BILLBOARD 16mm Pitch
Flash from Advertisement to Advertisement.....
Full Color P.C. Controlled W/ 291,840 bulbs total
Synchronously display all kinds of texts, pictures, graphics, signs, flashes,
video and any signal from TV, VCD/DVD, camera, scanner and so on
Comes with a "LAPTOP" Full 2 Year Warranty
Link ->
6" 8 1/2 " x 20' 2" Comes in 1 meter module cabinet systems w/access doors
Cabinet area 1024mm(W)x 1024mm(H) 95 sets
Physical resolution (W)64*(H)48
working voltage 110V 10% or 220V 10% (can be changed)
Driver Mode static ,constant current LED driver
Signal one input connector / one output connector
Power one 5V 6pin power connector
Operating Temp. -20-65 Celsius degree

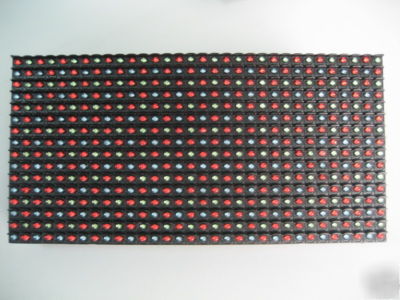

red, 1 green and 1 blue LEDs glaring out enough light intensity, and seen in strong sunlight.
There are covers on LED modules to increase the level of contrast on the Displays surface and direct LED light.
Color Package View Angle Wavelength Test Cond.
Red 3mm Oval Lamp 110 620-630nm 25
Green 3mm Oval Lamp 110 520-530nm 25
Blue 3mm Oval Lamp 110 465-475nm 25
Dot brightness difference: 1:1.33 (ANY DOT)
LED average current(Max): Red=20mA, Green=20mA, Blue=18mA
Conformity to CE/FCC standard.
LED Display System Specification
Input support S-VIDEO, COMPOSITE VIDEO, YUV, RGB and DVI input
R: Taiwan AOC (Taiwan) B/G: Silan
Sunlite ( Famous Taiwan led packaging company with more than 20 years

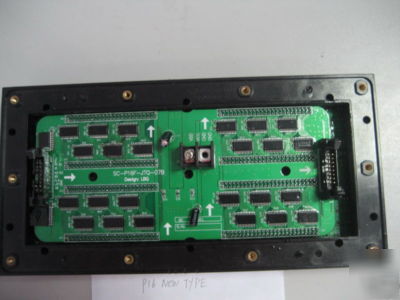

MBI5024 ( Macroblock Inc, Taiwan enterprise, which takes up more than 90%
market share worldwide in LED Display industry)
PCB Board Kingboard (Hong Kong, UL certificate)
Connector PLT(Taiwan, UL certificate)
Cooling Fan Best(CCC, CE certificate)
PH16 outdoor full color display
Screen Dimension: 6' 81/2'' x 20' 2''
Unit Cabinet Size: 1.024m(W)x0.768m(H)
Cabinet Material: Standard cabinet
Origin of Leds: R: Taiwan AOC, G/B: Silan
TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT OPEN THE PANEL ACCESSIBLE DOORS WHEN POWER IS ON.
Always ensure that the unit is properly earthed and power connections correctly made.
This equipment must be supplied from a power system providing a PROTECTIVE EARTH
connection and having a neutral connection, which can be reliably identified.
The power outlet supplying power to the unit should be close to the unit and easily
Always remember to close and lock the panel access doors after servicing and before
Ensure whole system power off before connect or disconnect the net cable.
I DELIEVER THIS ITEM PERSONALLY !!!
