> Rf solutions fm-RRF1-433MHZ - receiver, superhet, fm

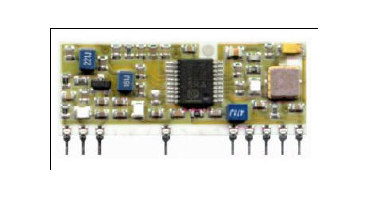

Rf solutions fm-RRF1-433MHZ - receiver, superhet, fm
Please take a look at my other items as I have a number of FM module types for saleKey attributes:
* Very High Frequency Stability (With No Adjustable Components)
* Receiving Range up to 250 Metres.
* CMOS/TTL Compatible Output.
* Low Current Consumption (Typ 5.5mA)
* Compatible with R.F. Solutions FM Transmitters.
* Compliant To ETSI 300-220.
* Requires No Radio Licence to Operate.
The R F Solutions Ltd. FM hybrid receiver module provides a complete RF receiver which can be used toreceive data at up to 9.6Kbps.The module is very simple to operate and offers low current consumption (typ. 5.5 mA). The TTL/CMOS dataoutput can be interfaced directly to a microprocessor or decoding device, thus keeping the component countdown and ensuring a low hardware cost.The module exhibits extremely stable electronic characteristics due to the use of Thick-Film hybrid technology,which uses no adjustable components and ensures very reliable operation.The module is compatible with R F solutions Ltd. range of FM transmitters to provide a complete solution
