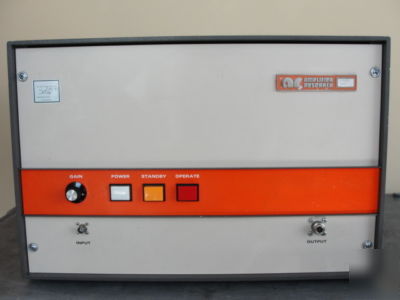

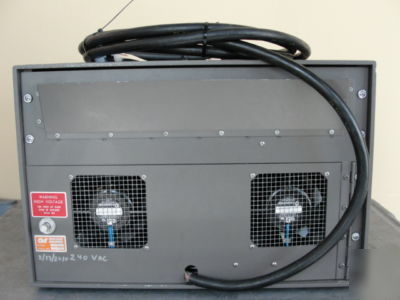

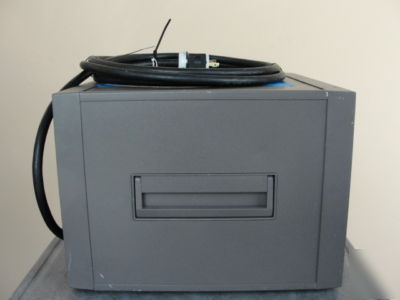

Amplifier research 100L amplifier 10 khz - 220 mhz 100W
The Amplifier Research 100L Amplifier has the following specifications:
* Frequency Range: 10 kHz - 220 MHz (instantaneously)
* Flatness: 1.5 dB at 1.0 mW input
* Input Power for Rated Output: 1.0 mW
* Output Impedance: 50 Ohms, VSWR 2.0:1 Max
* Input Impedance: 50 Ohms, VSWR 1.5:1 Max
* For fundamental frequencies below 120 MHz, not less than 15 dB below fundamental at 100 Watt output
* For fundamental frequencies above 120 MHz, not less than 30 dB below fundamental at 100 Watt output
* Mismatch Tolerance: The AR 100L has protective circuitry which enables operation without shutdown or damage under any magnitude or phase of source and load VSWR
* Primary Power: 115/230 10% VAC, 50/60 Hz
