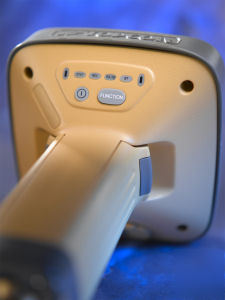

Topcon “gr-3†gsm,uhf gps triple constellation receiver
GR-3 GSM, UHF TRIPLE CONSTELLATION RECEIVER , GPS, GLONASS, GALILEO - G3
(1) Item # 99-054902-12 Dual GR-3 with GSM, UHF, with Standard G3 options Retails for
$40,900.00 Our Price $31,995.00
(1) Item # 27-050903-01 Base Receiver OAF, G3, GLONASS L1, L2 Tracking Retails for
(1) Item #27-050903-01 Rover Receiver OAF, G3, GLONASS L1, L2 Tracking Retails for
$3,500.00 Our Price $$1,350.00
(1) Item # 29-054902-01 Dual Configuration Kit, GR-3, 440-470MHz Retails for $1
$48,095.00 Our Price $33,840.00
S/N #444-0196/444-0198 Age 2008
Topcon s GR-3 receiver, the next generation of system design and tracking technology, is now available with a completely new digital UHF radio system utilizing DSP technology. This technological advancement delivers far greater reliability and performance than older analog UHF technology of the past and sets new standards for performance, accuracy and innovative design.
GPS receiver design has taken a quantum leap forward with the new GR-3. It starts with 72 universal channels that support all current and planned satellite positioning signals. Then there s the micro-tuned, precision antenna capable of receiving all G3 positioning signals with Topcon s patented center-mount radio antenna for superior signal tracking and interference reduction.
The GR-3 receiver incorporates a unique dual communication system, featuring both cellular and radio technology. Offering a 915 MgHz Spread Spectrum internal Tx/Rx* or Digital UHF radio, the GR-3 can serve roles as either an RTK base or rover system. And by utilizing the optional internal GSM/GPRS/CDMA modem communication system via the easily accessible cellular SIM card slot, a user can extend their range far beyond radio capability or utilize both receivers as rover systems off a fixed base station or a network system.
*915 MgHz Spread Specturm radio technology is not approved for use in Europe or Asia
It is the World s First G3 (GPS, Glonass, Galileo) capable GNSS receiver, and a clear indication of
* Digital UHF or Spread Spectrum radio
* Advanced Rugged System Design
* Optional Internal GSM/GPRS/CDMA Cellular Communication
* 72 Universal Tracking Channels
* RTK 10Hz position and raw observation, 20Hz optional
* Bluetooth Wireless Technology
* G3 Satellite Tracking (GPS, Glonass, Galileo)
Rugged magnesium I-beam construction for unbeatable strength & durability, the GR-3 also boasts easily accessible SD card memory and dual hot-swappable batteries for unlimited continuous operation. Internal Bluetooth wireless technology provides GR-3 users with the advantages of a completely cable-free system with any Topcon field controller.
Topcon's GR-3 with its wide array of advanced design features is truly a revolutionary receiver two steps ahead of any other receiver technology available!
* Full GPS L1, L2, C/A code, P code and L2C code signal tracking
* RTK 10Hz position and raw observation
* Advanced Multipath Reduction
* All data and communication ports active
GPS/GLONASS L1/L2/L5 C/A and P Code & Carrier, Gallileo E 1/2/5a and L1, WAAS/EGNOS
3mm +.5ppm horizontal, 5mm + .5ppm vertical
10mm + 1 ppm horizontal, 15mm + 1 ppm vertical
> .25m Post Processing, < .50m Real time
Magnesium I-beam Housing, Waterproof construction
-20 to +35 with batteries, -40 to +75 without batteries degrees Celsius
Dual Li-Ion "Smart" charger with optional Alkaline battery pack. Charger doubles as external power source
Two keys, Power ON/Off and Function Start/stop data logging, switch to extended information mode
6, one for receiver status, data recording indication, TX/Rx, Bluetooth status and 2 for indication of each battery charge level
Environmentally protected, removable SD media card slot
reverse tnc/bnc modem connector
