New kinedyne #1020 flatbed winch & #423021 winch strap-

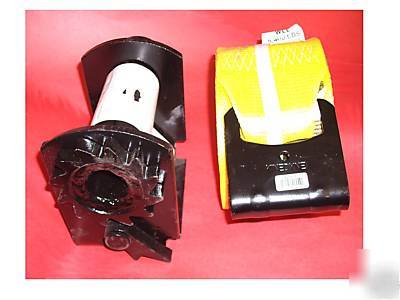

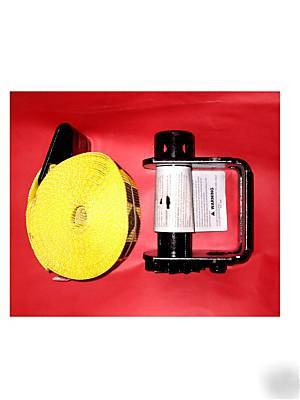

KINEDYNE #1020 FLATBED WINCH & #423021 WINCH STRAP
Kinedyne winches provide a method for securing cargo on flatbed trailers, rail cars and other vehicles
Standard Sliding. Sliding winches move easily in both directions for positioning in the track, but lock firmly in place when tension is applied to the webbing. Sliding winches are designed to be used with Kinedyne winch track (part numbers 3606 and 3607). All sliding winches can also be welded in place for fixed application.
A: 7 3/4 inches B: 4 7/8 inches C: 6 inches D: 4 inches
Working Load Limit: 5,500 lbs., 2500 kgs.
Kinedyne 4" winch strap.. All winch straps are made from resin-coated polyester for minimum stretch and maximum wear resistance. These rugged straps provide the strength and durability demanded in flatbed tie-down requirements. All winch straps are labeled to meet CHP standards, proposed North American Cargo Securement Standards, DOT regulations and WSTDA recommended standards. Straps are stenciled with the Kinedyne name and logo.
Winch Strap - 4" Webbing with Flat Hook, Abrasion Clip and 4000 Webbing - 30 ft.
