General gen-ear le water leak location system gr-le
The new Gen-Ear LE is better method for tracking down water leaks. It s a simplified, more economical tool with stronger sound amplification than other systems. Use it to pinpoint water leaks in residential and commercial water lines, whether they are under concrete slabs, in walls, swimming pools and hot tubs. The compact amplifier fits easily in the palm of your hand. It provides noise-free amplification with built-in preset audio filters, so you don t have guess what settings to use. And the high performance headphones with noise cancellation features block out interference from surrounding ambient noise. The ground sensor listens for the gurgling or hammering of water escaping from a cracked pipe under concrete, asphalt, or tile. For soft surfaces like grass or carpet, use the probe rods. Or, for above ground pipes or hydrants, you can use both the probe rods or the magnet attachment.
For especially hard to find leaks, the Sound Amplification Module adds air to the line, increasing water pressure. This amplifies the leak sounds, making them easier to locate.
The Gen-Ear LE will save you a lot of guesswork and unnecessary digging. And that saves you a lot of money.

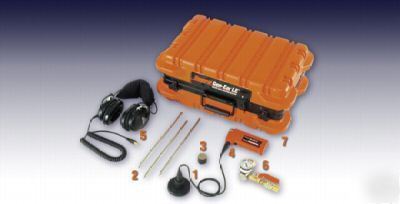

Finding the leak starts with a quality ground sensor. It locates leaks through
Looking for leaks under soft surfaces such as grass or carpet? The Probe Rods allow for easy sound sampling for leaks. Three one-foot probe rods thread into the sensor.
Sound surveying is much easierwith the sensor magnet attachment. It
threads onto the sensor to listen for leaks through above ground pipes,
fire hydrants, water mains, iron valves, or steel pipes and fittings.
Take the leak sounds and pump them through the powerful amplifier with built-inpreset audio filters, low battery indicator light, and volume control. It s mounted in a durable housing that fits easily in the palm of your hand. Safety mute button automatically shuts down the system when the headphones are removed to extend battery life. Includes builtin flashlight for night location jobs. Operates on two AAbatteries.
5.High Performance David Clark Stereo Headphones
High quality headphones give you the clearest sound with superb noise cancellation features to block out interference from surrounding ambient noise.
6.Sound Amplification Manifold (SAM)
Hard to find leaks get a boost with the SAM. It helps
amplify hard to hear leaks by using air to pressurize the
water line making leak location easier.
Made of high-density polyethylene. Designed to withstand heavy use and protect your
* SAM Sound Amplification Manifold
* Amplifier: Input Impedance: 430k, Output Impedance: 4 10 Ohm
* Amplification: 56 db +/- 3%
* Filter Characteristics: 100 ~ 1000 Hz
* Power: Two 1.5-Volt AA Batteries
* Dimensions: 5-3/4" x 1" x 2-1/2"
* Operating Temperature: 20 F ~ 130 F
* Sensor: Element: Piezoelectric Element, Sensitivity:1.00V/g at 400 Hz (Max.)
* Headphones: Dynamic Range: 10 - 20,000 Hz Noise Reduction Rating: 23db
* Carrying Case: Dimensions: 20" x 13.5" x 9" Weight: 7.5 lbs
Click Here for Instruction Manual
Gen-Ear water leak locators carry a two year limited warranty against defect in materials except as noted below. Should any part break or fail to work properly in the two years following purchase, it will be repaired or replaced at our discretion at no charge.
Damage due to negligence, rust, exposure to corrosive chemicals, improper usage, failure to follow instructions, accidents, or alteration from original design is not covered by this warranty.
In order to handle any adjustment with a minimum of delay, please follow this procedure:
