Wilton 10X16 horizontal mitering bandsaw ~ model #7020M

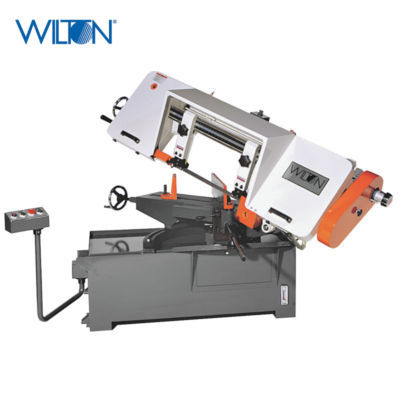

Wilton 10" x 16" Horizontal Mitering Bandsaw
With a list price of over $6,630.00, this new bandsaw is a great opportunity to save big!!!!
* Variable speed drive system allows the operator to fine-tune the blade speed fast and easily
* Exclusive 6 contact point blade adjustable guide assemblies
* Mitering Head - the workpiece remains fixed while the head swivels to cut any angle 0?- 45?
* Heavy-duty transmission utilizes hardened and ground gears operating in an oil bath
* Counterbalanced feed system is controlled by a dual system of counterbalance springs working with a hydraulic cylinder
* Motor 1-1/2HP, 115/230V, 1Ph, Prewired 230V
* Round at 90 Degrees (in.) 10
* Round at 45 Degrees (in.) 8-1/2
* Rectangle at 90 Degrees (in.) 9 x 16
* Blade Size (in.) 1 x .035 x 135
* Blade Speeds (SFPM) 100 350
* Bed Height (in.) 25-1/2
* Height 48 inch
* Width 30 inch
* Length 76 inch
* Net Weight 1134 pound
