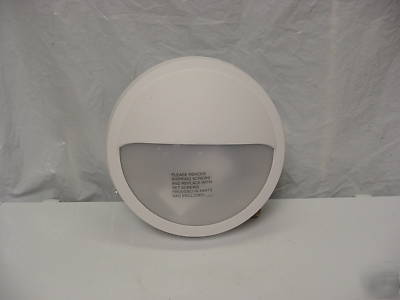

New rough service hid wet location 70W round eyelid

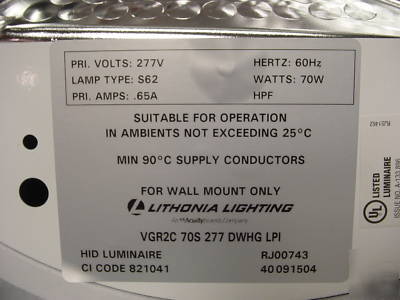

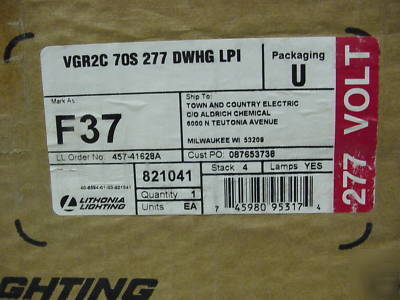

lithonia VGR2C 7OS 277 DWHG LPI
S62 70 WATT LAMP INCLUDED (hps)
Architectural deep-cast luminaire provides general illumination for
rough service (vandal resistant) applications. Ideal for interior or exterior applications
where safety and security are a concern.
Certain airborne contaminants can diminish
Click here for Acrylic Environmental Compatibility table for
Designed to complement building architecture and to endure extreme
environmental conditions and physical abuse.
Bezel - One-piece, marine grade die-cast aluminum, low copper alloy
(<1% copper). Encloses lens and secures to housing with stainless steel Torx
screws (two included) or optional stainless steel tamper-resistant screws (see Options).

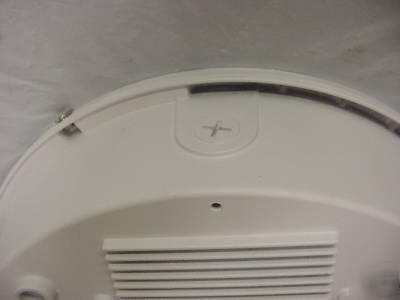

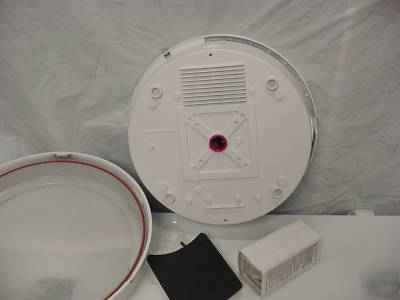

Housing - One-piece, marine grade die-cast aluminum, low copper alloy (<1% copper),
with post-painted polyester powder coat finish. Four hole mounting detail for use directly
over outlet box, or conduit entry through three 1/2" threaded openings on side or 3/4"
threaded opening on rear surface.
Gasket - Polycarbonate: Perimeter lens gasket is one-piece silicone "O" ring, mechanically
held in lens channel. Glass: Perimeter lens gasket is closed-cell silicone. Pad
mounting gasket is closed-cell neoprene and seals housing to mounting surface. Gaskets
Standard finish is textured polyester powder coat in white, black or bronze.
Optional architectural colors available (see Options).
Lens-polycarbonate Translucent white, injection molded, UV
stabilized lens is .125 inch thick. Smooth exterior allows for easy cleaning, and interior
pattern diffuses light for even surface illumination.
Lens-glass Tempered borosilicate lens, .250 inch thick, has smooth exterior for easy
cleaning and textured interior.

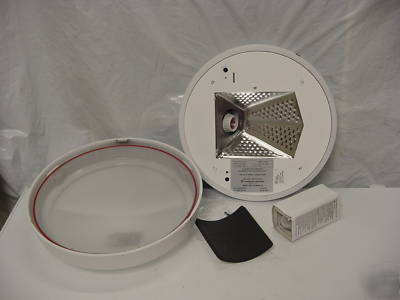

Reflector Internal reflector is semi-specular aluminum, with high-reflectance white
powder coat perimeter for maximum light output. Lamp positioning assures uniform
Ballast - High Reactance, High Power Factor with starting
temperature of -20 F (-29 C), Metal Halide; -40 , High Pressure Sodium.
Socket - Medium base porcelain with copper alloy, nickel plated screw shell and center
contact. UL listed 660W, 600V, 4KV pulse rated.
Lamp - Lamp included unless specified L/LP.
UL Listed to US and Canadian Safety Standards (see Options). UL listed for
oC ambient and wet locations. IP65 rated.
NOTE: Specifications subject to change without notice.
