Ism ahu recirculating air handler 32,800 cfm clean room

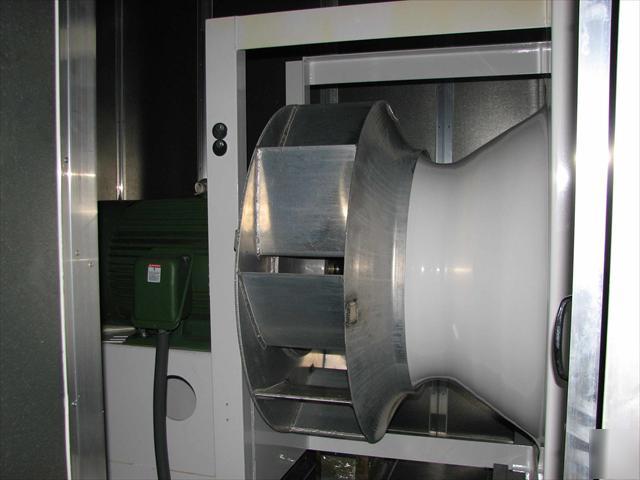

ISM AHU Recirculating Air Handler 32,800 CFM Clean Room
ISM AHU Recirculating Air Handler 32,800 CFM
Industrial Sheet Metal & Mechanical Corporation
* Toshiba 60HP Direct Drive 1200RPM Motor
* Toshiba TOSVERT-130H2 Controller
* Hot/Cold Capable using glycol or conditioned house water
* Dimensions: Length: 23' Width: 10' Height: 10' (approximate)
* Air Inlet Duct: 34"x86" (approximate)
* Air Outlet Duct: 44" x 65" (approximate)
* Sections / Length : (1) 8'-9", (2) 9'-5", (3) 5'-0" (approximate)
