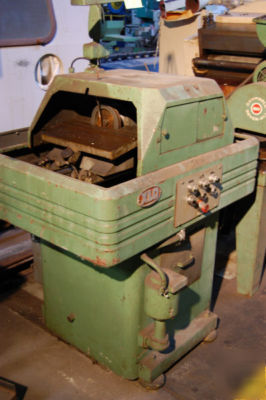

#44A excello double-end carbide tool grinder #25303
Grinding Wheels, Diameter.............. 6"
Table Dimensions, L x W................ 16" x 9"
Table Tilt Above Horizontal............ 5-DEGREES
Table Tilt Below Horizontal............ 30-DEGREES
Table Adjustment For Wheel Wear........ 1.5"
Spindle Speed.......................... 3600 RPM
Wheel Surface Speed.................... 5500 FPM
Height Of Spindle From Floor........... 42.625"
Motor Horsepower/RPM................... 3/4 HP/3600 RPM
Overall Dimensions, W x D.............. 3'7" x 2'8"
Weight Approximately................... 800 LBS
