True freezer glass door store food equipment gdm - 49F
Template By Froo! True Freezer Glass Door Store Food Equipment GDM - 49F

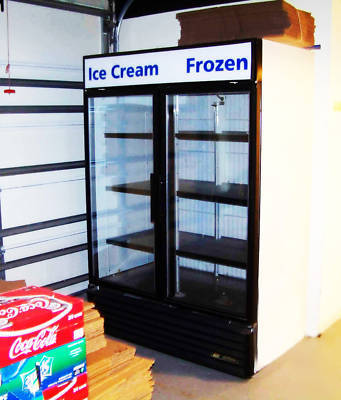

TRUE GDM-49F Merchant Display Freezer
True s glass door freezers are designed with enduring quality that protects your long term investment.
True s commitment to using the highest
quality materials and oversized refrigeration
systems provides the user with colder
product temperatures, and lower utility costs
in an attractive merchandiser that brilliantly displays frozen food and ice cream.
Factory engineered, self-contained, capillary tube system using environmentally friendly (CFC free) R404A refrigerant. Extra large evaporator coil balanced with higher horsepower compressor and large condenser; maintains -10 F (-23.3 C).

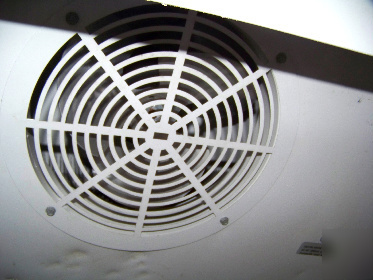

Sealed, cast iron, self-lubricating evaporator fan motor(s) and larger fan blades give True merchandisers a more efficient low velocity, high volume airfl ow design. This unique design ensures colder standard temperatures and faster recovery in high use situations.
Bottom mounted condensing unit positioned for easy maintenance. No stoop lower shelf
maximizes visibility by raising merchandised product to higher level.
Automatic defrost system time-initiated, temperature-terminated. Saves energy consumption and provides shortest possible defrost cycle.
Exterior - non-peel or chip white laminated vinyl; durable and permanent.
Interior - attractive, NSF approved, white aluminum liner with 300 series stainless steel floor.
Insulation - entire cabinet structure is foamed-in-place using high density, CFC free, polyurethane insulation.
Welded, heavy duty galvanized frame rail dipped in rust inhibiting enamel paint for corrosion protection inside and out.
Frame rail fitted with leg levelers.
Illuminated exterior sign panel. Variety of sign options available.
Triple pane thermal insulated glass door assemblies with extruded aluminum frames.
Each door fi tted with 12" (305 mm) extruded handle.
Self closing doors. Positive seal, torsion type closure system.
Magnetic door gaskets of one piece
construction, removable without tools for ease of cleaning.

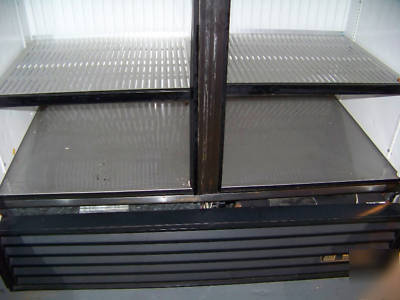

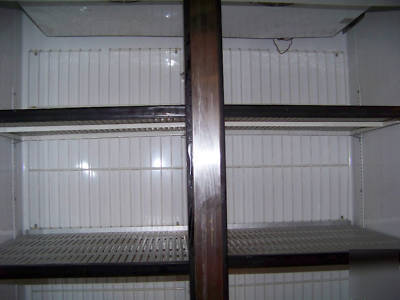

Eight (8) adjustable, heavy duty PVC coated
wire shelves 249/16"L x 203/4"D (624 mm x
528 mm). Four (4) chrome plated shelf clips
Shelf support pilasters made of same
material as cabinet interior; shelves are
adjustable on 1/2" (13 mm) increments.
Safety shielded fl uorescent interior lighting.
Doors utilize full-length, patented, integrated door light (IDL) system.
Cabinet lighting utilizes electronic ballast and T-8 bulbs for brighter illumination,
longer bulb life and increased energy efficiency.
ROUGH-IN DATA Speci?cations subject to change without notice. Chart dimensions rounded up to the nearest 1/8" (millimeters rounded up to next whole number).
Cabinet Dimensions (inches) (mm)
Cord Length (total ft.) (total m)
? Depth does not include 11/8" (29 mm) for door handles. ? Plug type varies by country. Requires 115/208-230/60 Hz, single phase, 3 pole, 4 wire circuit.
