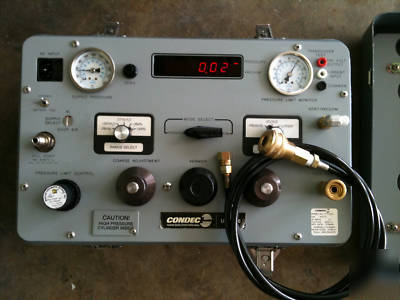

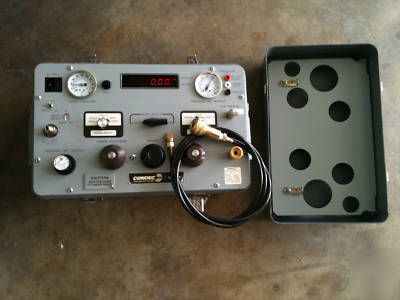

> Condec pressure calibrator UPC5100 excellent condition
Condec pressure calibrator UPC5100 excellent condition
UPC5000 Pressure Calibration Standard
View/Download Catalog/Specs PDF files
These files are in PDF format and require Acrobat Reader 3.0 or higher.
* Aircraft manufacturing, government laboratories, oil industry, electric power plants (nuclear and fossil), and general industry
* Pharmaceutical validation and calibration
* Bio-medical quality assurance
* Five independent selectable ranges in each instrument
* Available with Light Emitting Diode (LED) or Liquid Crystal Display (LCD)
* Display resolution on 0.02% F.S. typical for each range
* 0.05% F.S. accuracy for each range
* State-of-the-art pushbutton calibration. No analog potentiometers or adjustments required
* Three different technicians can calibrate the same transmitter and get identical results...every time
* Easy to operate, training can be accomplished in 10 minutes
* Available in self-contained enclosure with carrying handles (UPC5100) or rack mounted version (UPC5110)
* Lightweight - less than 30 pounds
* Adjustable overpressure protection
* Self-contained nitrogen cylinder and vacuum converter provides 27" Hg (w/out external pump) to 100 psi
* Voltage/current display mode for transducer testing
* Quick disconnect fitting and hose included
* 5100 Pressure traps (100 psi and below operation)
