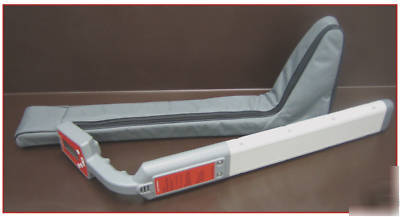

Rothenberger underground utilities locator
By using the 69001 locator before doing any digging, you could save thousands of dollars in utility and equipment damages.
The 69001 cable, pipe, camera and sonde locator offers two active frequencies, 512 Hz, 33 kHz, ensuring the ability to track any manufacturer s camera or sonde system operating on 512 Hz or 33 kHz. Passive frequencies identify live and charged power lines by their naturally occurring electromagnetic fields. The 69001 offers one passive frequency, 50/60 Hz, allowing line locating without the use of a transmitter. Simple to operate, the ergonomically designed and balanced 69001 receiver pinpoints active inspection camera heads and sondes. A large backlit digital display provides both relative and actual signal strength while a variable tone pitch gives an audio indication to the signal. The triple antenna configuration provides push-button depth accurate up to 5 feet and works in peak, pin-point peak and null modes when used with a transmitter. Whether locating water lines, sewer lines, inspection cameras or sondes, this is an economical and dependable locator for companies of all sizes.
Input Frequency: 512 Hz, 33 kHz, 50/60 Hz, RF
RF Frequency Range: 14 kHz to 30 kHz
Antenna Mode: Peak, pin-point peak, and null
Display Indicators: Backlit LCD bar graph, low battery, signal strength, mode and function indicators
Audio Indication: Variable pitch response
Current Measurement: Display indicates relative current
Power Source: 6 Disposable, C batteries
Battery Life: Continuous: 40 hours; Intermittent: 82 hours
Signal Strength: LCD bar graph, absolute signal strength readout
Gain Control: Up/down for automatic centering and manual
Depth Measurement: Push-button readout to 5 feet or manual triangulation method
Operating Temperature: -4 F to +133 F (-20 C to +55 C)
Size: 30.3 x 9.4 (77 cm x 24 cm)
