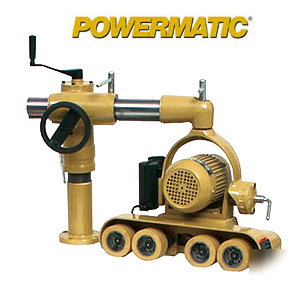

Powermatic arc feeder, 3PH, 460V, 4 wheel
Stock Number: 1790817K / Model Number: PF4-ARC
With a list price of over $1,400, this unused surplus model will save you thousands!
These rugged, heavy-duty stock feeders feature continuous-duty motors that transfer power from the gear box to the feed roller through the roller chain and sprockets, providing superior positive feeding for all types of materials.
* The fully adjustable support columns feature moveable universal joints and heavy locking mechanisms that lock the feeder in horizontal, vertical, or angle feed positions
* Solid cast iron construction of bodies, bases and universal joints provide stability with vibration-free feeding
* The smart roller system provides money-saving wheel changes by allowing the replacement of the tire only, not the complete assembly as on other units
Powermatic 1790817K 460V Only Stock Feeder Specifications:
* Number of Speeds: 6 speeds
* Range of Speeds: 11.5, 20, 23.3, 26.6, 40.0, 53.1 FPM
* Movement: Vertical 7.5 "
* Movement: Horizontal 7.5 "
* Column Diameter: 2.28 "
* Rollers: 4 x 2 "
* Distance Between Rollers - Center to Center: 4.09 - 6.90 - 4.09 "
* Maximum Height of Rollers Parallel to Tabletop: 7 1/10 "
* Rotation: Forward/Reverse
* Swing: 360
* Motor Power: 1/2 HP
* Motor Voltage: 460 V
* Motor Phase: 3 Ph
* Overall Dimensions: 26.7 x 21.42 x 31.5
* Height: 31.5 inch
* Width: 21.42 inch
* Length: 26.7 inch
