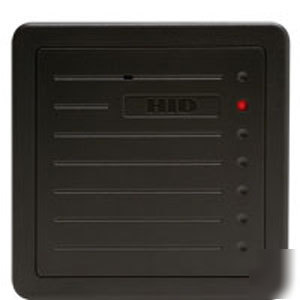

New 2 hid prox pro 5355 proximity reader in box
THIS IS FOR 2 HID 5355 AGNOO NIW IN BOX
ProxCard II Card - up to 8" (20 cm)
ISOProx II Card - up to 7" (17.5 cm)
DuoProx II Card - up to 7" (17.5 cm)
Smart ISOProx II Card - up to 7" (17.5 cm)
Smart DuoProx II Card up to 7" (17.5 cm)
HID Proximity & MIFARE card up to 7" (17.5 cm)
ProxCard Plus Card - up to 3" (7.5 cm)
ProxKey II Keyfob - up to 3" (7.5 cm)
MicroProx Tag up to 4" (10.2 cm)
ProxPass Active Vehicle Tag N/A
*Depending on local installation conditions.
5.0" x 5.0" x 1.0" (12.7 x 12.7 x 2.54 cm)
10-28.5 VDC; Linear power supplies recommended. Reverse voltage protection included.
Wiegand or Clock and Data interface: 500 feet (152 m)
RS-232 interface: 50 feet (15 m)
RS-422 interface: 4000 feet (1219 m)
Recommended cable is ALPHA 1295 (22 AWG) 5 conductor stranded with overall shield or equivalent.
Additional conductors may be required for LED or beeper control. RS-422 requires ALPHA 6212C 2-Twisted Pair, shielded cable with drain wire, or equivalent for data, plus ALPHA 1292C two-conductor shielded or equivalent for DC power.
