Hypercom credit card terminal (display model)
Check out my other items! This machine was a Salesman's Model
It does have some marking but it is definately in very good condition
It has never been activated or used in any retail store
directly from Hypercom, by visiting
or call their toll free number 1 877 Hypercom
The cost of the power source is approximately 30.00
You must obtain a cc processing company to activate and register your terminal
These machines cost in excess of $300.00 new

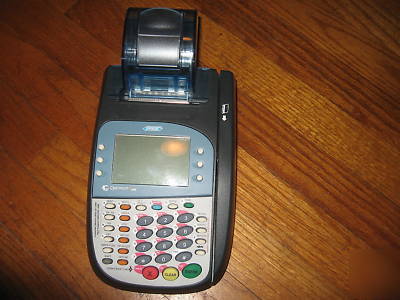

The picture shown is the actual machine you will be receiving
For additional information about this model visit the hypercom web site
See the Optimum T4100 in action and you ll wonder what you ve been waiting for.
Unsurpassed Functionality. User-Friendly Features.
* Rapid configuration Minimum keystroke setup
* Security standard Fast, secure PIN entry
* Proven firewall security Share data, maintain program isolation
Can we talk about real cost effectiveness? Performance? Security?
The Right-Now and Future Cost-Effective Terminal
* Reduces training time, troubleshooting and help desk calls with integrated IP diagnostics, and reduces terminal replacement costs
* Lets you configure faster and more accurately with its wizard-style user interface and embedded help system
* Supports up to 20 separate, unique merchant ID numbers, and up to 99 separate server/cashier numbers, for outstanding flexibility
* Lets you add more profit-making applications to its 24MB memory
* Uses Hypercom Adaptive Application Environment (AAE) to automatically combine value-adds in a single, integrated solution no separate certifications needed
Performance Measures Up to Demand and More
* Supports dial and IP applications in a single unit
* Prints receipts with graphics and barcodes at 18 lines per second with powerful SureLoad printer and offers branding and couponing at the same time
* Takes receipt customization to a whole new level with four header lines six if using the multi-merchant application, four receipt footer lines and customizable idle screen text
* Uses either a single application with rich, embedded features and functions and value-added applications; or independent application modules
* Offers one-touch keys with quick-and-easy programmability and standard integrated PIN pad
* Supports Electronic Commerce Indicators (ECIs) to qualify web-based
* Protects against all Internet threats through the advanced Hypercom Public Key Infrastructure (PKI) security system designed with RSA, Inc.
* Full-featured, secure terminal management system including local or web-based options
* Provides fast Triple Data Encryption Standard (DES) for secure encryption and protection of valuable cardholder information
The Optimum T4100 holds Class A, B and B plus certifications. Visit the Hypercom website for a complete list of current certifications.
Intel XScale 32-bit processor operating at 200MHz with performance of 250 MIPS
Elastomeric: 35 keys, water splash-resistant; 6 soft keys; 19-key model available
Magnetic stripe: Tracks 1, 2 & 3 (standard)
and Vivotech external readers; standalone unit connected via miniDIN; RS-232 port
Dual RS-232 ports (standard with use of splitter); 10/100Base-T Ethernet (standard); PIN pad port: 4-wire, RS-422; Modem: 56K/V.90, synchronous (SLDC) and asynchronous
SureLoad clamshell printer: Drop-in loading, thermal technology, 384 dots per line, 18 lines per second, including graphics
Paper roll: 2.24 (standard), 3 (optional); 57mm x 80mm diameter
8.94 in x 5.91 in x 2.52 in / 22.7 cm x 15.0 cm x 6.4 cm
Humidity: Max 85%, non-condensing
