Dold industries delay-on make mini-timers EF7616.32 lot

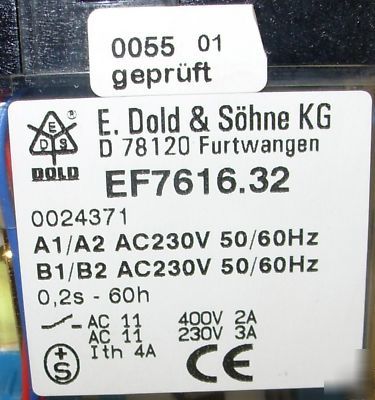

Manufacturer: E. Dold & Sohne KG (Dold Industries)

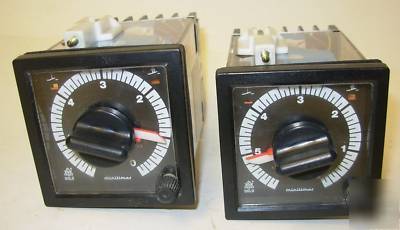

Item Title: Delay On Make Mini-Timers (Pair)
For short times, the quick start is recommendable for a higher repeat accuracy. Here the version AA 7616.32 is necessary. The terminals A1-A2 always remain at nominal voltage (synchronous motor is continuously operating). Time elapse starts when connecting nominal voltage to B1-B2
The frequency change-over 50/60Hz is done by moving a switch on the back side of the device with a screw driver Timer AA 7616.__/100, EC 7616.__/100, EF 7616.__/100, EH 7616.__/100 delay on make, no-voltage save When energizing the clutch it will be locked by a barrier, so that in case of a voltage loss. The already expired time remains stored; also the nondelayed contacts remain in the closed position. After elapse of the set time, the barrier will be opened and the delayed contacts will be actuated. If the set-time should start again after a stop of the time lapse, the time setting in the no-voltage condition has to be turned down to 0 and back again to the pre-set time value
Condition: Pulled from a working environment in excellent condition.
