#10289 - roeders rp 600 high speed cnc milling center

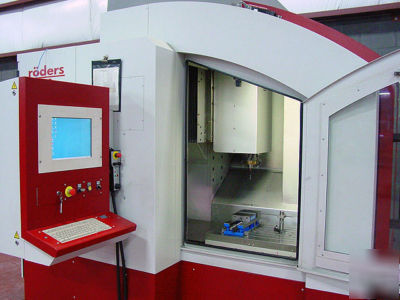

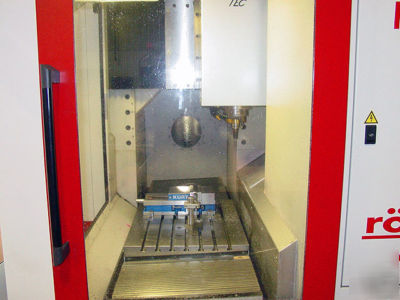

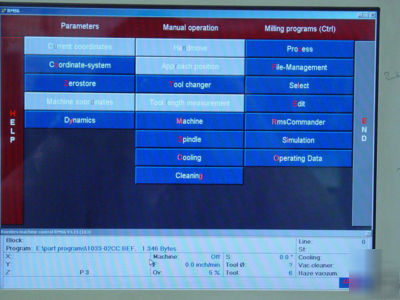

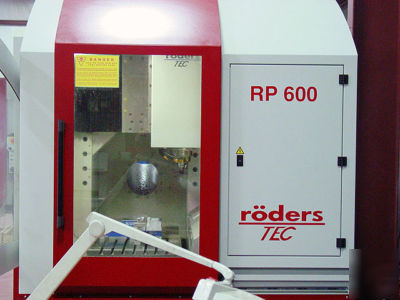

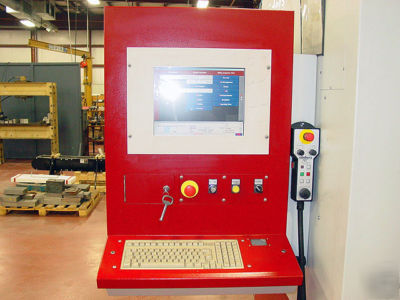

ROEDERS RP 600 HIGH SPEED MILLING CENTER WITH INTEL PENTIUM BASED HIGH SPEED ROEDERS CNC CONTROL
Work envelope 23.6" X, 19.7" Y, 11.8" Z
Axis drive motors AC-synchronous motors
Ball screws Preloaded, zero backlash
Guideways Schneeberger Super Precision Linear Guides
Positional Accuracy +/- .0002" per full stroke
Feedrates 0 to 2,362 Inches per minute
Machine dimensions 118"W x 118"D, 126"H
Max. workpiece weight 1,760 lbs.
Maximum tool diameter .750" Diameter
Full patented enclosure, all of the axes are completely sealed and kept under positive pressure
Laser tool length measuring device (MRFW110)
Fiber optic ethernet network card (MRS1107)
N C Milling simulation (MRS4105)
Roeders inductive heat shrink device for HSK 50 (MZBI0460)
Automatic tool cleaning station (MRFW201)
Telephone link (PC-Anywhere with Modem) (MSWP0200)
Software for re-cutting partial programs (MSW41080)
