> Nsk 6800-2RS 10X19X5 mm sealed brg lot of 10

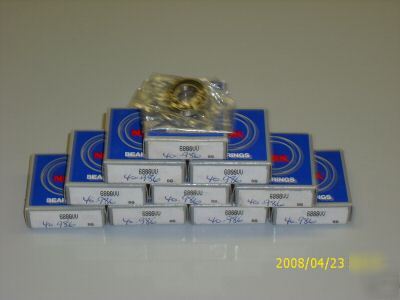

Nsk 6800-2RS 10X19X5 mm sealed brg lot of 10
NSK 618002rs 10X19X5 MM Sealed BRG Lot of 10 NIB!!!!!!
DESCRIPTION 6800VV, STEEL CAGE BEARING
MANUFACTURER NSK CORP.,BEARING DIV.
CLOSURE TYPE : SEALED, BOTH SIDES
INTERNAL CLEARANCE TYPE: NORMAL FIT
STANDARD PACKAGE QUANTITY: 1 EACH
LIMITING SPEED RPM (GREASE): 34,000
MAX. OPERATING TEMPERTURE (C): 120 DEGREES C.
MAX. OPERATING TEMPERTURE (F): 250 DEGREES F.
RADIAL DYNAMIC LOAD RATING, - KGF: 175
RADIAL DYNAMIC LOAD RATING, - LBF: 385
RADIAL STATIC LOAD RATING - KGF: 90
ACTUAL OUTSIDE DIAMETER (METRIC): 19 MM
ACTUAL OUTSIDE DIAMETER (INCH): .7480 IN.
ACTUAL INSIDE DIAMETER (METRIC): 10 MM
ACTUAL INSIDE DIAMETER (INCH): .3937 IN.
BEARING COMBINATION TYPE: SINGLE ROW
CORNER RADIUS OUTER CONER (METRIC): .30 MM
CORNER RADIUS OUTER CONER (INCH): .010 IN.
RADIAL DYNAMIC LOAD RATING, (N): 1,720
RADIAL STATIC LOAD RATING, (N): 840
THRUST CAPABILITY SINGLE / DOUBLE DIRECTION: DOUBLE DIRECTION
RADIAL STATIC LOAD RATING, (LBF): 189
DESCRIPTION: SINGLE ROW DEEP GROOVE BALL BEARING
PARAMETRIC DESCRIPTION: ID = 10 MM. OD = 19 MM, WIDTH = 5 MM, CLOSURE = SEALED, BOTH SIDES, CLEARANCE = NORMAL FIT, SINGLE ROW, DEEP GROOVE BALL BEARING
