> Heathkit be-5 battery eliminator
Heathkit be-5 battery eliminator
Extra low-ripple filter circuit less than .3% AC ripple
Separate lo-filter and hi-filter output

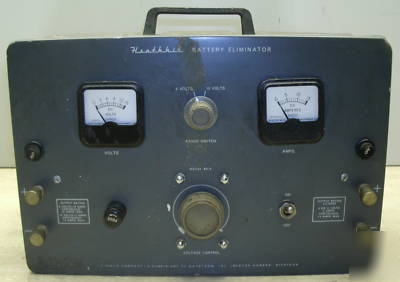

Output voltage and current monitored on panel meters
6 or 12 volt operation continuously variable output
Ideal for all kinds of transistor work
Continuously variable voltage output; 0-8 volts DC: 10 amperes continuously, 15 amperes maximum intermittent. 0-16 volts DC: 5 amperes continuously, 7.5 amperes maximum intermittent.
Filtered Output Ripple: 6 volts DC at 5 amperes: Less than 0.3%. 12 volts DC at 5 amperes: Less than 0.3%.
Power Requirements: 105-125 V, 50-60 cycles AC at 200 watts.
Dimensions: 13" wide x 8 " high x 7" deep.

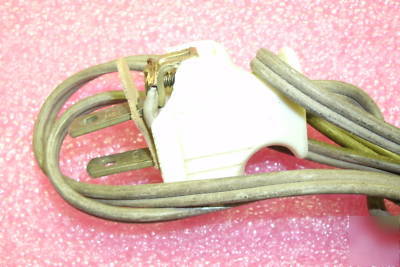

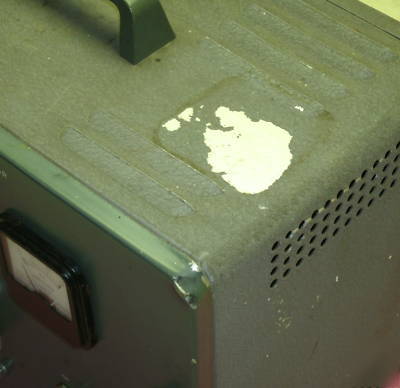

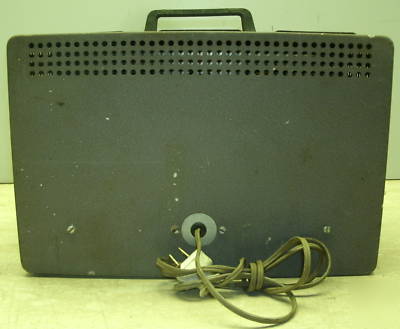

This unit is old and shows signs consistent with moderate use over time. Please note the plug is damaged and there is some wear on the cabinet. Please see pictures for further details.
