> Dedicated micros ecosense ECS2-1T0-16A dvr 1000GB 1TB

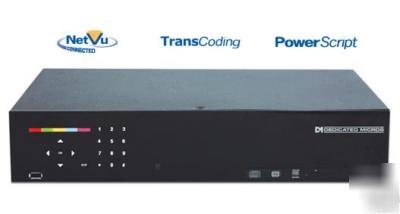

Dedicated micros ecosense ECS2-1T0-16A dvr 1000GB 1TB
Model/Part Number: ECS2-1T0-16A
Dedicated Micros new entry-level DVR provides low cost, multi-channel recording with simultaneous playback and viewing. The EcoSense can be accessed and controlled from the state-of-the-art, touch sensitive front panel or via a mouse or keyboard, giving the user full access to all the DVR s features including PTZ control, Alarm and Event Management and Activity Detection.
With a state of the art touch sensitive panel, the EcoSense provides instant access to all its control options via its unique
SIMULTANEOUS LIVE VIEWING & RECORDING
The EcoSense offers simultaneous live viewing & recording on all models to allow live monitoring without impacting recorded video.
True global record rates of up to 200pps (PAL), 240pps (NTSC) at CIF. Assuming all camera channels are populated:
CIF available at 12pps (PAL), 15pps (NTSC) per camera
2CIF available at 6pps (PAL), 7pps (NTSC) per camera
D1/4CIF available at 3pps (PAL), 4pps (NTSC) per camera
The EcoSense includes on board help videos for assitance with both User and Configuration features. Accessible from both the local and remote viewer the videos cover all major operation and configuration topics including; basic live and playback control, telemetry operation, alarm configuration, event reviewing and archiving.
* 4, 8 or 16 Channel models, up to 240pps (@ CIF Resolution) across the unit
* Simultaneous Live viewing and Recording
* 4CIF/2CIF/CIF record rate at 4/7/15pps per camera
* State of the art touch sensitive front control panel
* Simple graphical interface controlled via USB Mouse or PTZ Keyboard
* DVD writer and USB ports for download of video archive to external storage device
* Composite or VGA main monitor
* Serial PTZ Control including Pelco P & D
* NetVu Connected - ensures interoperability of all Dedicated Micros NetVu Connected products and third-party integration products
* Global MPEG-4 or JPEG record settings
* TransCoding - High quality recording and simultaneous video transmission using MPEG-4 or JPEG for remote Live viewing AND Playback
* Embedded OS on non-volatile flash memory
* NetVu Observer PC client for remote viewing and management; Compatible with a range of operating systems, including Mac
American Dynamics Matrix & 168-Matrix
JVC TK-C675BE, TK-C676 & TK-C553E
Sensormatic SpeedDome IV & SpeedDome V
