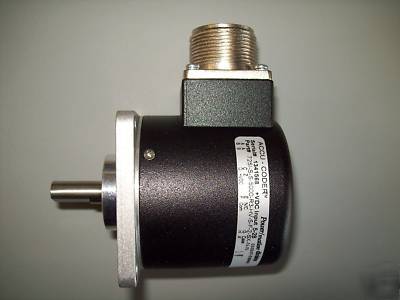

Accu-coder encoder # 725I-s-s-5000-R3-hv-5-f-2-sx-n-n
ENCODER PRODUCTS COMPANY ACCU-CODER
MODEL# 725I-S-S-5000-R3-HV-5-F-2-SX-N-N
HOUSING STYLE: HEAVY DUTY INDUSTRIAL WITH INTERNAL FLEX MOUNT
SHAFT SIZE: 3/8", 0.375" (STANDARD)
OPERATING TEMPERATURE: 0 TO 70 DEG. C
NUMBER OF CHANNELS: QUADRATURE A & B WITH INDEX Z
OUTPUT TYPE: 5-28V IN/OUT (24 VDC MAX FOR HIGH TEMPERATURE OPTION) LINE DRIVER
FREQUENCY RESPONSE: 250 KHZ,>3000 CPR
CONNECTOR TYPE: 10 PIN MS STYLE
