> 62256 32KX8 low power cmos static ram HM62256LP-12
62256 32KX8 low power cmos static ram HM62256LP-12

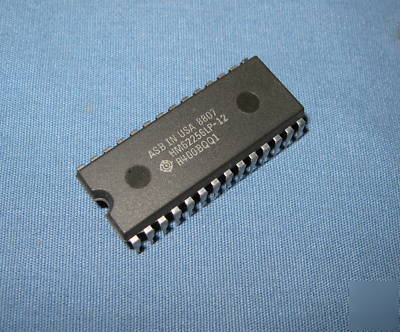

Hitachi HM62256LP-12 - 32,768 X 8-Bit High Speed CMOS STATIC RAM
32k x 8 Static CMOS Ram - Plastic 28 Pin DIP
High speed: Fast access time 85/100/120/150 ns (max)
Low power standby and low power operation
- Standby: 200 JlW (typ)/ 10 JlW (typ)
- Operation: 40 mW (typ) (f = I MHZ)
Completely static RAM: No clock or timing strobe required
Common data input and output, three-state output
Directly TIL compatible - all inputs and outputs
Battery back up operation capability (L-/L-SL-version
