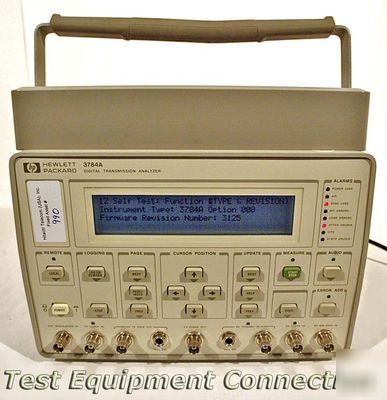

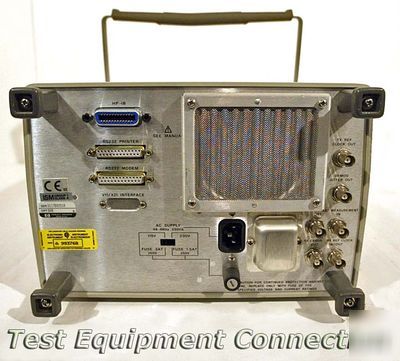

Agilent hp 3784A /008/ digital transmission analyzer
* G.821 error analysis at 704 kb/s, 2, 8, and 34 Mb/s
* Optional jitter measurement at 2, 8, and 34 Mb/s
* Clock synthesizer rates between 1 kb/s and 50 Mb/s
* Single key measurement setup using preset memory
The HP 3784A is a portable error performance/jitter test set, offering standard telecom interfaces at 704 kb/s, 2, 8, and 34 Mb/s. In addition it has binary TTL/ECL interfaces for measurements up to 50 Mb/s using internal clock synthesizer. The HP 3784A is easy to use with measurement presets, automatic receiver setup and error performance pass/fail thresholds. Automatic jitter tolerance and transfer plotting routines are provided for fast accurate testing up to and beyond CCITT limits. Through data mode allows jitter to be added to a structured signal for jitter tolerance testing of demultiplexers.
