Leviton auxiliary zone network power extender D3200
Leviton Auxiliary Zone Network Power Extender D3200

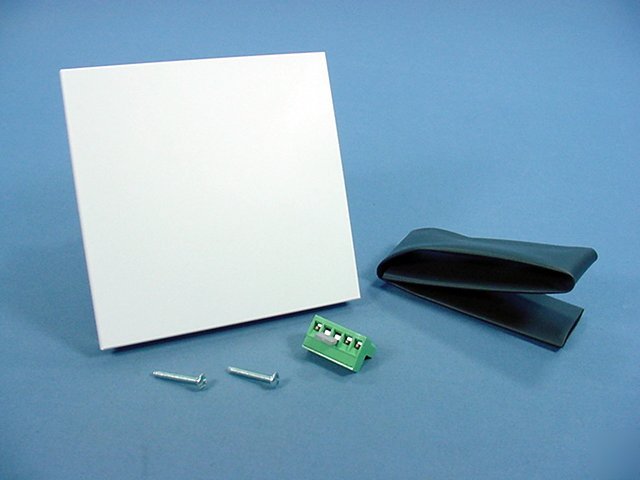

Leviton PEAUX-12W auxiliary-zone network power extender (for D3200 systems only). Enables 2 auxiliary zones on a D3200 controller/dimmer for full control over incandescent, magnetic low-voltage, or neon/cold cathode lighting. Features include:
* Rated 1920W/VA total or 1000W/VA maximum per zone; Input Voltage: 120V 50/60Hz; Dimmer Input: D3200
* Powers incandescent, halogen, magnetic low-voltage, and neon/cold cathode lighting
* Can be surface- or flush-mounted using 1900 Box and 2-gang raised cover
* Aluminum heat sink with snap-on white cover
* Measures 4.72"h x 4.5"w; projects 11/16" from wall surface
* Works with Dimensions D3204/D3206/D3208 controller/dimmer to activate the two auxiliary zones
This is New Old Stock and is returnable for any reason. (SKU #LPEAUX-12W-EA; 1.15 Pounds)
