> Robohand inc. rps-12M-c parallel gripper/w rack gear ec

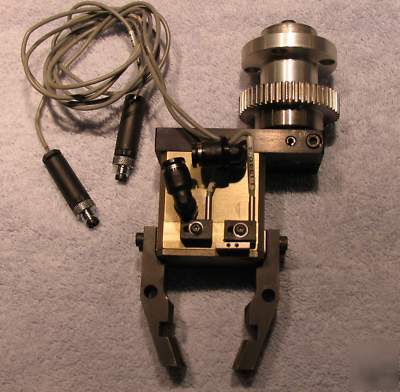

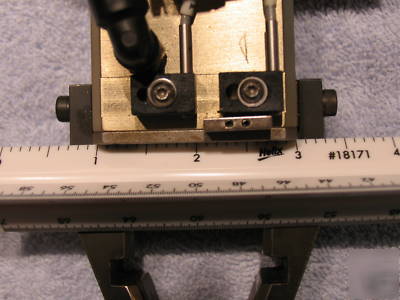

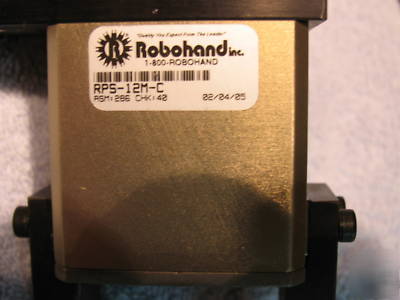

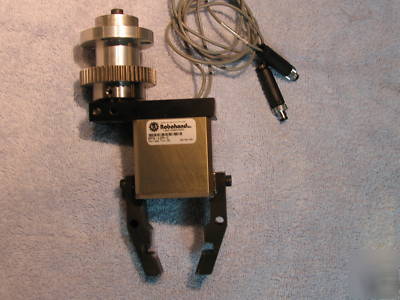

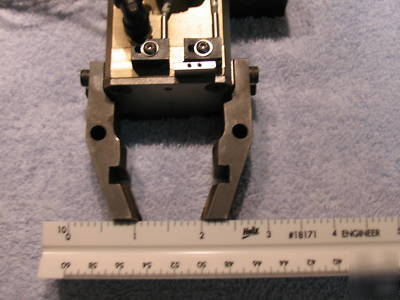

Robohand inc. rps-12M-c parallel gripper/w rack gear ec
More and complete specs http:// /suppliers/DeStaCo/grippers/2jawParallelGrippers/RPS.pdf?id=fcv&t=p
SPRING ASSISTED DOUBLE WEDGE SERIES
F @ 100 psi, 7 bar 60 lbs. 267 N
Stroke........................................................ 0.38 in. 9.5 mm
Weight ....................................................... 0.76 lbs. 0.34 Kg
Pressure Range......................................... 50-100 psi 3.4-7 bar
Cylinder Bore ......................................... 1.000 in. 25.4 mm
Displacement ............................................ 0.150 in
Standard Seals....................................... -30 ~180 F -35 ~80 C
Seals ............................................ -20 ~300 F -30 ~150 C
Actuation .................................................. 0.15 sec. 0.15 sec.
Accuracy.................................................... 0.002 in. 0.05 mm
Repeatability.............................................. 0.001 in. 0.03 mm
Valve required to actuate single acting ..... 3 way, 2-position
Valve required to actuate double acting.... 4-way, 2-position
