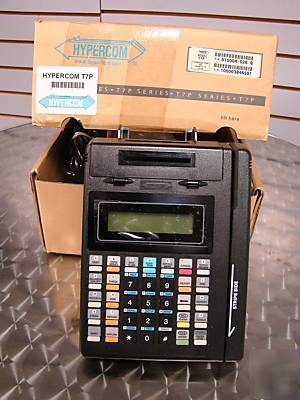

New hypercom T7P credit card machine with power cord/
* 35-key keyboard is easy to learn; simple to use
* Clerk-friendly operations make it easy to change paper and ribbons
* Cashier replaceable printer module
* High visibility 2x20 back-lit LCD display
* Full track 1 and 2 card reader is standard
* Memory - EPROM 32K; RAM 512K; Optional 1MB
* Display - 2 lines x 20 characters, back-lit LCD; Options: 64 x 128 pixel graphics display
* Printer - Integrated roll printer at 1.7 lines/second, 40 columns, 2-ply no-carbon paper 2 1/4 inches wide by 100 feet (with full 3 inch diameter roll of paper), 5x7 font
* Keypad - 35 keys; Options: 59 keys with QWERTY Keyboard
* Card Reader - Tracks 1 and 2 simultaneous; Options: Track 3
* IC Card Reader - ISO8316; Options: EMV compatible
* Communications - LAN, RS485, 2 wire or 4 wire
* Auxiliary Ports - PIN Pad, RS422/RS485; Options: RS232
* Reliability - Key Life: 350,000 Operations; Card Reader: 400,000 Reads; Printer: 900,000 lines MCBF
* Peripheral Compatibility - S7C; S7SC; S8; CS7GC; P8S; P8F; S7GCB; ICR1
* Physical - H: 4.5 in ; W: 6.25 in; D: 11.5 in (301 mm); Weight: 1.98 pounds (2.40 pounds with paper);
* Environmental Operating Temperature - 32 to 113 F
* Operating Humidity - 15% to 85%, non-condensing
