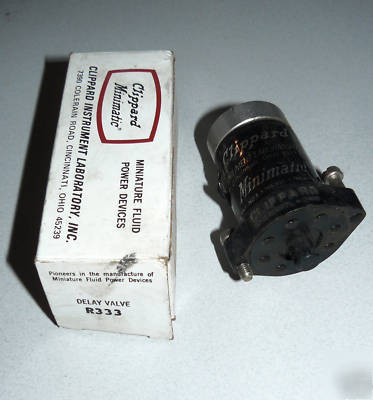

> Clippard r-333 3-way delay in spring return valve
Clippard r-333 3-way delay in spring return valve
R-331 and R-333 are dual element combinations consisting of a fully ported, spring return, 3-way valve, and an adjustable flow control to provide a delay IN function. Input signal at port 4 will be delayed through adjustable flow control and will delay the actuation of the valve. The 3-way valve is fully ported and can be used normally-OPEN, normally-CLOSED, or as a selector or diverter. Port 7 is an auxiliary for adding volume for longer time delays. If not used, port 7 should be plugged.
Multiple porting speeds piping
Micro gap construction - snap action and no blow by
Screwdriver slot needle adjustment deters tampering (R-333)
Knurled knob for fast accurate adjustments - no tools needed (R-331)
9 scfm @ 100 psig; 255 l/min @ 6.9 bars
